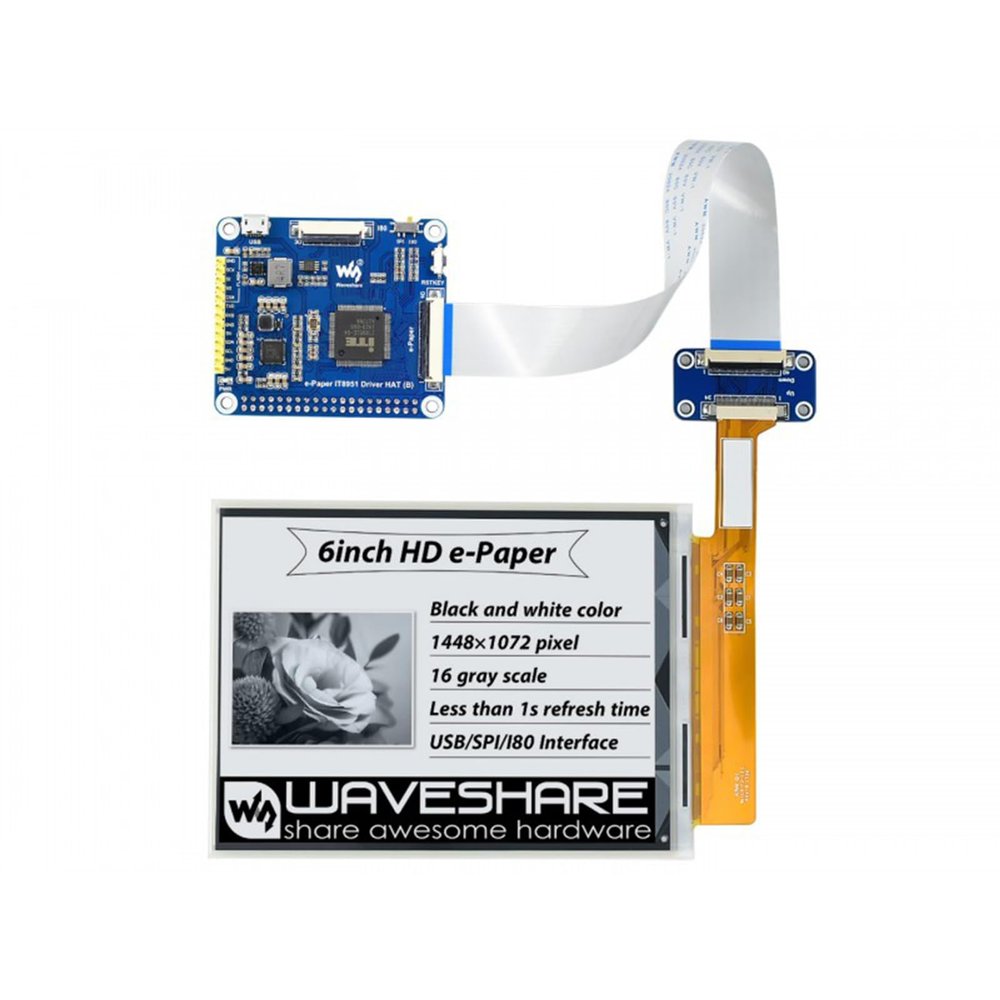

TUOPUONE 6inch E-Ink Display HAT Compatible with Raspberry Pi 14481072 Resolution High Definition Black/White Color 16 Gray Scale Without PCB Supports Partial Refresh

Description

• This is an E-Ink display HAT compatible with Raspberry Pi, 6inch, 14481072 high definition, with embedded controller IT8951, communicating via USB/SPI/I80 interface, supports partial refresh.
• It is an ideal choice for applications such as shelf label, industrial instrument, and so on.
• Standard RPi 40PIN GPIO extension header, supports RPi series boards
• USB/SPI/I80 interface, for connecting with host boards like RPi/Nucleo, etc.
• Comes with development resources and manual (examples for RPi/STM32)

Overview
This is an E-Ink display HAT compatible with Raspberry Pi, 6inch, 14481072 high definition, with embedded controller IT8951, communicating via USB/SPI/I80 interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features
No backlight, keeps displaying last content for a long time even when power down
Low power consumption, basically power is only required for refreshing
Standard RPi 40PIN GPIO extension header, supports RPi series boards
USB/SPI/I80 interface, for connecting with host boards like RPi/Nucleo, etc.
Comes with development resources and manual (examples for RPi/STM32)

Specifications
Operating voltage: 5V
Interface: USB/SPI/I80
Outline dimension: 138.4mm 101.8mm 1.01mm
Display size: 122.4mm 90.6mm
Dot pitch: 0.0845mm 0.0845mm
Resolution: 1448 1072
Display color: black, white
Gray scale: 2-16 (1-4 bit)
Full refresh time: 170

Package Content
Note: the Raspberry Pi is NOT included.
6inch HD e-Paper x1
e-Paper IT8951 Driver HAT (B) x1
6inch e-Paper Adapter (B) x1
40PIN FFC (same side contact) x1
USB type A plug to micro B plug cable x1
PH2.0 20cm 8Pin x1
RPi screws pack (2pcs) x1
