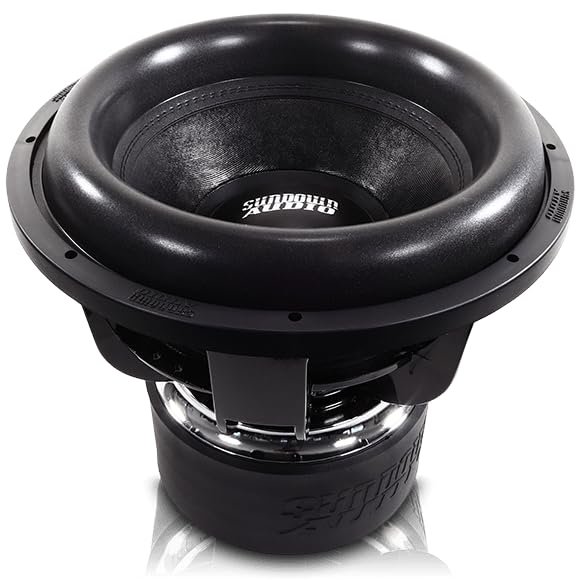

Sundown Audio Z v.6 12" D1 Competition Subwoofer - 3250W RMS / 6500W Peak, D1 Voice Coil, 35mm Xmax, Patented Frame, Deepest Bass for Ported Enclosures Z12v6D1

Description

• Extreme Power & Unmatched Excursion: Experience groundbreaking bass with the Sundown Audio Z v.6 12" subwoofer, delivering 3250 Watts RMS (6500 Watts Peak) and a phenomenal 35mm one-way Xmax, engineered for the lowest possible bass extension and incredibly responsive, distortion-free output.
• Revolutionary Motor & Voice Coil: Featuring a quad-stacked 240mm motor, hyper-extended pole, and a black aluminum 3-inch 8-layer flat wire voice coil (same as NS v.5), this Z v.6 is designed for immense magnetic strength and superior thermal handling, driving deep bass with incredible force.
• Advanced Cooling & Durability: Built for relentless performance, the Z v.6 ensures longevity with a heavily vented magnetic gap, optimized high-velocity pole vent, and new machined channels around the pole piece for enhanced voice coil ventilation, maintaining optimal temperatures under extreme power.
• Patented & Robust Construction: Mated to custom tooled, patented frames (US Patent D691596, D691597, D691598, D741841), this subwoofer features ultra-linear spider packs and stitched-on XL tinsel leads, preventing fatigue and ensuring an additional level of ruggedness for competition-grade reliability.
• Optimized for Deep Bass Enclosures: The Z v.6 series is designed to be the new standard in low-frequency subwoofers for small ported boxes (2.5 cu.ft. net, 38 sq.in. port area, 32Hz tuning), also accommodating up to 50% larger enclosures for even greater low-end extension and an incredibly linear suspension.

Sundown Audio Z v.6 12" D1 Subwoofer: Unrivaled Deep Bass & Performance
Redefine your car audio with the Sundown Audio Z v.6 12" D1 Subwoofer. This competition-grade masterpiece, an improved version of its acclaimed predecessor, delivers the deepest, most impactful bass with astonishing clarity and power. Engineered for serious enthusiasts, the Z v.6 embodies relentless performance and uncompromising reliability.
Powerful Performance: At its core, the Z v.6 12 D1 handles a robust 3250 Watts RMS and 6500 Watts Peak. This subwoofer is built to move serious air and produce felt-not-just-heard bass. Its impressive 35mm one-way Xmax, combined with a hyper-extended pole and extreme clearances, effectively makes it "bottomless" and capable of incredible excursion. This ensures incredibly deep, low, and extremely responsive bass.
Optimized Sound Quality: Designed as the new standard for low-frequency/small ported box subwoofers, the Z v.6's incredibly linear suspension allows for the lowest possible bass extension in compact enclosures with minimal distortion. Its 3" diameter 8-Layer Flat Wire Aluminum Voice Coil drives immense excursion. A large aluminum Faraday (shorting) Ring reduces distortion for smoother acoustic response. With an extremely low resonant frequency (33.8198 Hz) and optimized T/S parameters, this subwoofer provides precise, high-fidelity bass.
Durable & Advanced Construction: Built to endure demanding conditions, the Z v.6 features a solid structure and premium components. It utilizes Sundown's custom-tooled, patented cast aluminum frames for unparalleled rigidity. A quad-stacked 240mm (9.45) motor with a 100mm (3.94) magnet stack height ensures immense magnetic strength. The top plate is 5mm thicker than the Z v.5 series. Voice coil ventilation is vastly improved with a high-velocity pole vent, heavily vented magnetic gap, and new machined channels around the pole piece for superior cooling.
Reliability & Engineering Excellence: The Z v.6 uses the same 8-layer voice coil as the NS v.5 series, a significant upgrade from the Z v.5's 4-layer, for higher motor force. Custom-tooled ultra-linear spider packs and stitched-on XL Tinsel Leads prevent fatigue, enhancing ruggedness. Spring-loaded terminals simplify installation. The Mega-Roll v.2 surround completes this powerful and reliable subwoofer.
Key Features & Specifications:
Power Handling: 3250W RMS / 6500W Peak
Xmax: 35mm one-way by 70% BL
Voice Coil: Black aluminum 3" 8-layer flat wire (NS v.5 spec)
Motor: Quad stacked 240mm (9.45) diameter, 100mm (3.94) magnet stack height
Frame: Patented cast-aluminum; Vented spacer ring
Cooling: Heavily vented gap, optimized pole vent, machined channels
Tinsel Leads: Stitched-On XL
Recommended Ported Enclosure: 2.5 cu.ft. net; Tuning: 32Hz; Port Area: 38 sq.in.
Mounting Depth: 11.75" (298.5 mm)
Outside Diameter: 12.67" (322.0 mm)
Cut-Out: 11.09" (276.1 mm)
The Sundown Audio Z v.6 12 D1 Subwoofer is the epitome of high-performance audio accessible to all. Its powerful output, robust construction, and refined design ensure a premium listening experience with deep, accurate bass.
