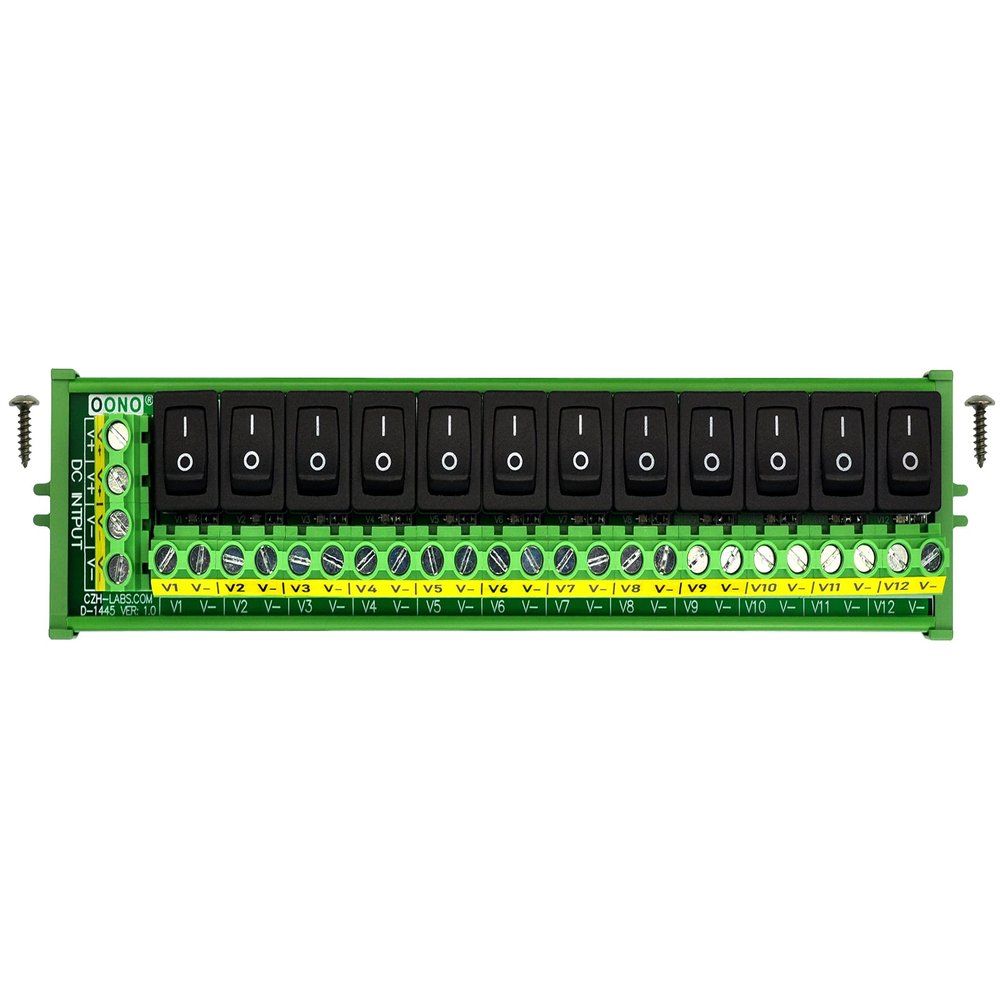

Screw Mount 12 Channel Rocker Switch DC Power Distribution Strip Module

Description

• Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 12 Channels output, each channel maximum output current 10 Amps.
• Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
• Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
• Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
• FR-4 fiberglass dual copper layers PCB. Taiwan high quality fireproof nylon material mount carrier(not China low quality carrier). Also included two M3 x 10mm wood screws, you can easily mount it on a wooden board.

1, Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 12 Channels output, each channel maximum output current 10 Amps.
2, Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
3, Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
4, Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
5, FR-4 fiberglass dual copper layers PCB. Taiwan high quality fireproof nylon material mount carrier(not China low quality carrier). Also included two M3 x 10mm wood screws, you can easily mount it on a wooden board.
