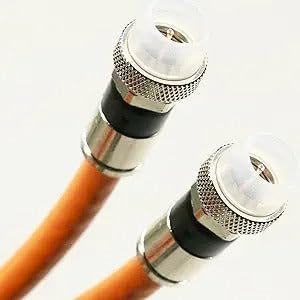

PHATSAT Made in USA Coaxial Cable, Underground RG6 Jumper Weather-Shield Connector, Orange 8 ft

Description

• Underground Burial rated. Triple Shielding Layers. 77% braid with Semi-Wet gel 18AWG solid core. Widely use by Internet provider.

Individually hand crafted, swept tested in the USA. Tri-shield Solid Core Direct Burial RG6 designed for Direct Burial Underground signal transmission, semi-wet gel coated braids with moisture inhibitor UL listed. Underground usage with moisture proofed jacket in compliance to UL standards. The connectors are selectively paired, high pressure-compressed onto the cable's jacket to ensure resilience to withstand abrasion from installation works. Each cable are swept tested and made to strict standard specifications with 6 staging quality control procedures.

CABLE APPLICATIONS Ultra High Definition (UHD) 4k Cable TV Gigabit High Speed cable internet service remote sensor, RDF modulators and devices Signal amplifier for various applications application with high moisture environment that requires moisture inhibitor properties for extra signal transmission protection

CABLE SPECIFICATION Solid Copper Clad Core 18AWG, Nominal OD: 1.02 0.01 mm Adhesive: EAA
Foil Shield Coverage: 100% (18% Overlap Min ) each shield
Foil Shield Material: Aluminum Alloy
Braid Coverage: 77% coverage braid with semi wet gel coated for moisture protection Gas Injected Foamed PE, Nominal OD 4.57 0.10mm Impedance 75 Ohms 3 Ohms
Velocity of Propagation 81%
Capacitance 15.2 pF/ft
Nominal Delay 1.11 NS/ft.
Inner Conductor DC Resistance 22 /km
Shield DC Resistance 19 /km
Sweep Tested 5 MHz to 2000 MHz
UL Listed CATV / CM Ultra HD approved urial environment usage Operating Temperature: -40C through +75C Bonded APA Laminate Shield PVC jacket Complies with UL 1581 Jacket Nominal OD 7.60 0.15mm

CONNECTORS Male F-type to Male F-type coaxial connector Plastic body seals the back end of the connector from environmental factors Metal compression ring also allows industry leading cable retention values from standard to quad shield Maintains ground continuity even when very loose Reduces QAM errors/packet loss Integrated Weather Seal (Weather boot) ensures a moisture-tight seal on every connection and enables an easy visual port entry Protects against digital video artifacts, DOCSIS performance degradation, LTE interference, and upstream signal-to-noise issues Knurled grip enhances ability to pre-tighten with fingers prior to wrench tightening Bandwidth 0 MHz to 3 GHz
Impedance 75 Ohms (nominal)
Return Loss (Gated)
5 to 1,000 MHz -30 dB Minimum
1,000 to 2000 MHz -30 dB Minimum
2,000 to 3,000 MHz -20 dB Minimum
Insertion Loss 5 to 3,000 MHz Less than .20 dB
Operating Temperature -40 F to 140 F (-40 C to 60 C)
Cable Retention 45 lbs (20.41 kg) minimum Constructed with Brass, Nickel Plated, Anti-Corrosion Materials Excellent Shielding Protection Unique 7/16 in Snap Torque in nut profile allows hand tightening while discouraging wrench-tightening on CPEs Maintains ground continuity even when very loose Reduces QAM errors/packet loss Prevents service issues from loose connections

*** ***

IMPORTANT INFORMATION
Standard RG-6 cable (1786-RG6/A with attenuation of 5.99 dB) number of taps in your segment (there is no minimum trunk-cable section length requirement). The maximum allowable total length of a segment is 1,000 m (3,280 ft) with two taps connected. Typical signal loss is approximately -5dB per 100ft. for TV reception. Please consider length below 200ft for minimal signal loss for most TV and satellite TV applications. We recommend to use RG11 for length above 150ft and longer. See our RG11 page for additional information. For recommendation and or usage application, please consult with your service provider or our helpdesk prior to making a purchase.
