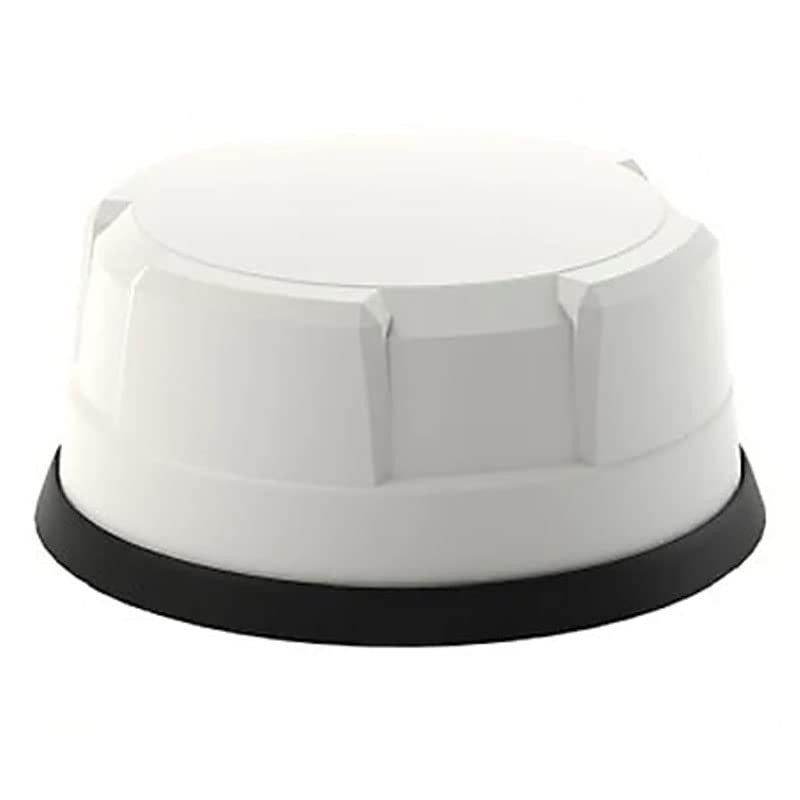

Panorama Antennas MAKO 5G Dome 5G 7-in-1 high-Performance 4x4 MiMo 617-960/1710-6000MHz, 2x2 Wi-Fi and GPS/GNSS Antenna - White - Panel Mount - LGMDM4-6-60-24-58

Description

• Cellular 4x4MiMo: 617-960/1710-6000MHz, Wi-Fi 2x2MiMo: 2.4/5.0GHz, GPS/GNSS 1562-1612MHz 26dB LNA
• Designed for latest generation LTE Cat 18/20 routers and devices
• Single Hole Panel Mount Installation
• Ground Plane Independent | Suitable for Conductive or Non-Conductive Surfaces
• Flame retardant cables compliant to UNECE R118
• Pre-terminated antenna connectors fitted as standard
• Terminations : 4G/5G SMA (m), WiFi SMA (f) & GPS/GNSS FME (f)
• Cable Type RG174 -FR (UN ECE R118 Compliant) / Length (m) 0.3 / 1 feet
• Mounting type: Panel mount Max panel thickness (mm)7 (0.27) Mounting hole (mm)19 (3/4)

The MAKO 5G Dome consists of up to 11 elements; four isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 2 dual band elements covering 2.4 & 5.0/7.2GHz support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.
The MAKO 5G Dome is a range of high-performance 4x4 MiMo antennas covering 617-960/1710-6000MHz with GPS/GNSS and Wi-Fi 2x2 MiMo/Diversity at 2.4/5.0/7.2GHz
Please Note: This antenna is not intended for use with a router that has 2 SIMS to provide concurrent or aggregated data operation, as there is not sufficient isolation between the MiMo pairs.
