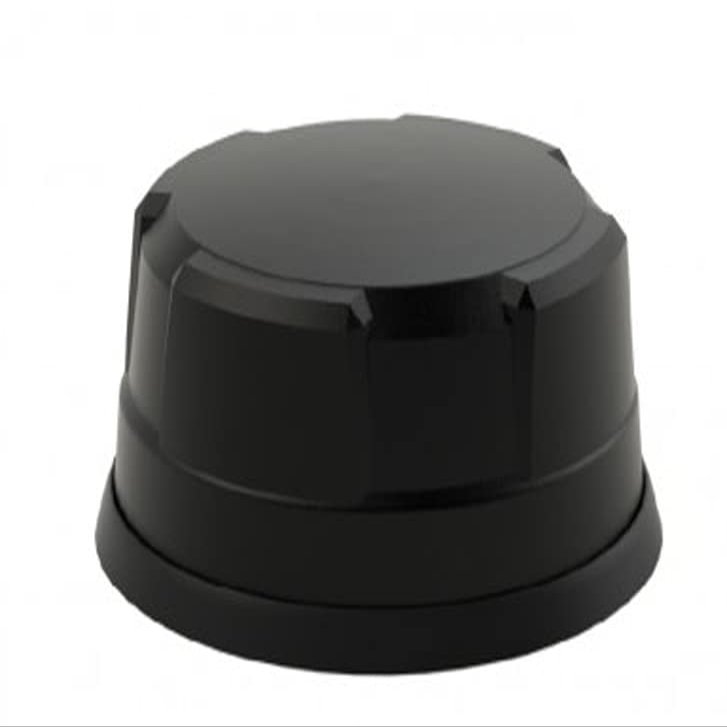

Panorama Antenna 5-in-1 LG-IN2444 High Performance 4x4 MiMo LTE 5G and GPS/GNSS Dome Antenna Covering 617-960/1710-6000MHz - SMA - Thread Mount - Black l Cradlepoint Certified Antenna

Description

• The LG-IN2444 is a high performance 4x4 MiMo LTE and GPS/GNSS antenna covering 617-960/1710-6000MHz./ Peak Gain: Isotropic : (dBi) 4G/5G Elements 617-960MHz 4 1710-3800MHz 8 4900-6000MHz 9
• Peak Gain: Isotropic : (dBi) 4G/5G Elements 617-960MHz 4dBi, 1710-3800MHz 8dBi, 4900-6000MHz 9dBi
• 4x4 MiMo 4G/5G LTE cellular and GPS/GNSS in one housing
• LTE Cable Type: CS32 (UN118.03 / EN45545-2 Compliant) -GPS Cable Type: FR CS29 (UN118.03 / EN45545-2 HL2 Compliant) - Cables Length: 5m (16')
• Mounting Type Panel Mount - Mounting Method18mm (3/4") Mounting Bush
• Suitable for Cradlepoint COR IBR1700 Series Routers

Cradlepoint Certified Antennas by Panorama
The LG-IN2444 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS in a compact low profile housing. The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in black or white and meets IK10 for vandal resistance and IP69K for ingress protection. .
The integrated GPS/GNSS module supports GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimize potential in band interference.

LG-IN2444 is supplied as a complete plug and play kit with integrated 5m (16) ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G and GPS.
