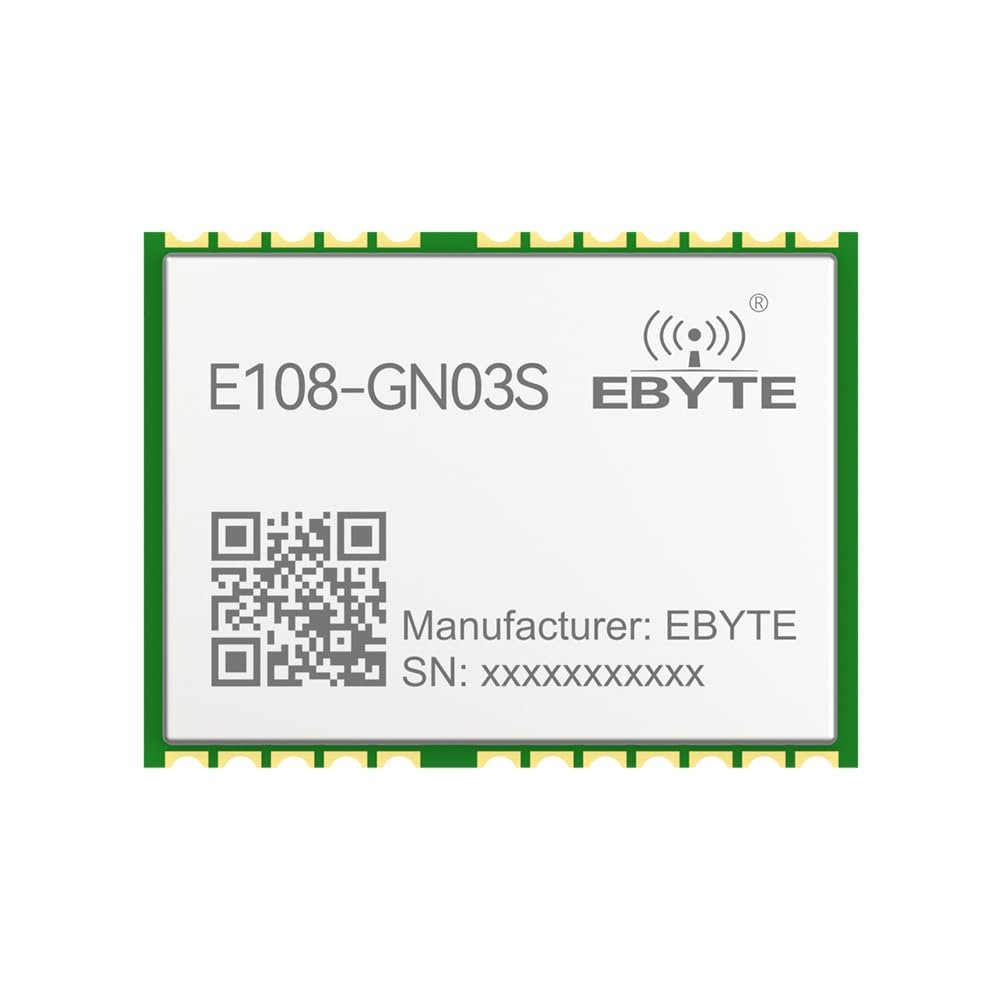

Mulit Positioningand Navigation Module E108-GN03S AT6558R BDS GPS GLONASS GNSS Small Size Low Power LNA Saw Industrial Grade Stamp Hole Antenna

Description

• Support BDS/GPS/GLONASS multi-system joint positioning and single-system independent positioning;Supports all the satellites of BeiDou II/III No. 1-63;supports A-GNSS assisted positioning; Compatible with other manufacturers' hardware and software, significantly reducing the user's development cycle;
• supports A-GNSS-assisted positioning;Maximum update rate of positioning information is up to 10Hz;is developed based on 32-bit RISC CPU; supports PPS output;
• Built-in reset controller; supports PPS output; has a built-in reset controller; supports UART and GPIO interfaces; has active antenna detection and protection;
• supports power management function;Output format: supports NMEA0183V4.1 and previous versions; High sensitivity: cold start -148dBm, hot start -156dBm, recapture -160dBm, track -162dBm
• Application Scenarios- In-vehicle positioning and navigation devices;Wearable devices such as GPS trackers; drone positioning, industrial computers, etc; Industrial devices that have a need for GNSS positioning or navigation; Portable devices such as cell phones, tablets, etc;Asset tracking;

Chip program: AT6558R

Communication interface: UART/GPIO

Operating voltage: 2.7-3.6V

Communication protocol: NMEA0183 V4.1 and previous version

Product Size12.2*16.0*2.4mm

DescriptionE108-GN03S is a high-performance, highly integrated, low-power, low-cost multi-mode satellite positioning and navigation module, based on AT6558R program, supports BDS/GPS/GLONASS, small size, low power consumption, can be used in car navigation, smart wear, UAVs, and other GNSS positioning and navigation applications, and provides and other module vendors compatible with the soft It also provides compatible software and hardware interfaces with other module manufacturers, which significantly reduces the user's development cycle. Also supports a variety of ways to connect with other peripherals, support for UART, GPIO interface, if you need I2C, SPI interface, please contact customer service to customize.
