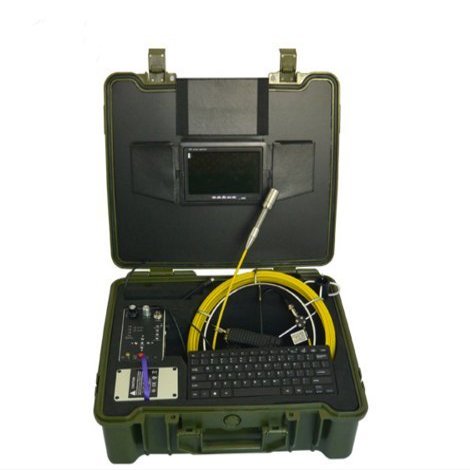

MABELSTAR 100ft Fiberglass Push Rod Chimney Inspection Camera with Dia.23mm Camera Head and Keyboard

Description

Applications of CCTV pipe inspection camera system
1. WATER SUPPLY
2. WASTER WATER
3. ELECTRICAL AIR CONDITIONER
4. CABLE DUCTING
5. DUCTED VACuUM SYSTEMS
6. PLUMBING
7. IN BUILDING

Product main specifications:

Camera Head
* Camera head size Dia.23 x 120mm for pipe Dia.to 200mm
* Camera head casing material stainless steel
* Camera lens window material sapphire glass
* Sensor size 1/4 inch CMOS camera
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120 degree,IP68 waterproof
* 12 pcs high intensity white LED


Monitor
* 7 inch TFT LCD monitor
* 4:3/16:9 display model optional
* Brightness:400cd/m2

DVR Control Box
* DVR control buttons
* SD card (max 64G) jack,keyboard jack
* LED brightness adjusting knob
* A / V & photo selection available
* On/off microphone control button
* Battery level indicator lights

Battery pack & Charger
* 4400mA li-ion battery
* AC110V-240V 1A power charger
* Charging time 5 hours, working time 6 hours

Cable Reel
* Fibreglass push rod cable
* Cable diameter Dia.5.2mm
* Cable length from 20m to 50 optional
* Reel size Dia. 320 x 110mm

Carrying case
*ABS carrying case: 520 x 435 x 200mm

Signal System: PAL and NTSC are available, Please advice which Signal System you need, PAL or NTSC
