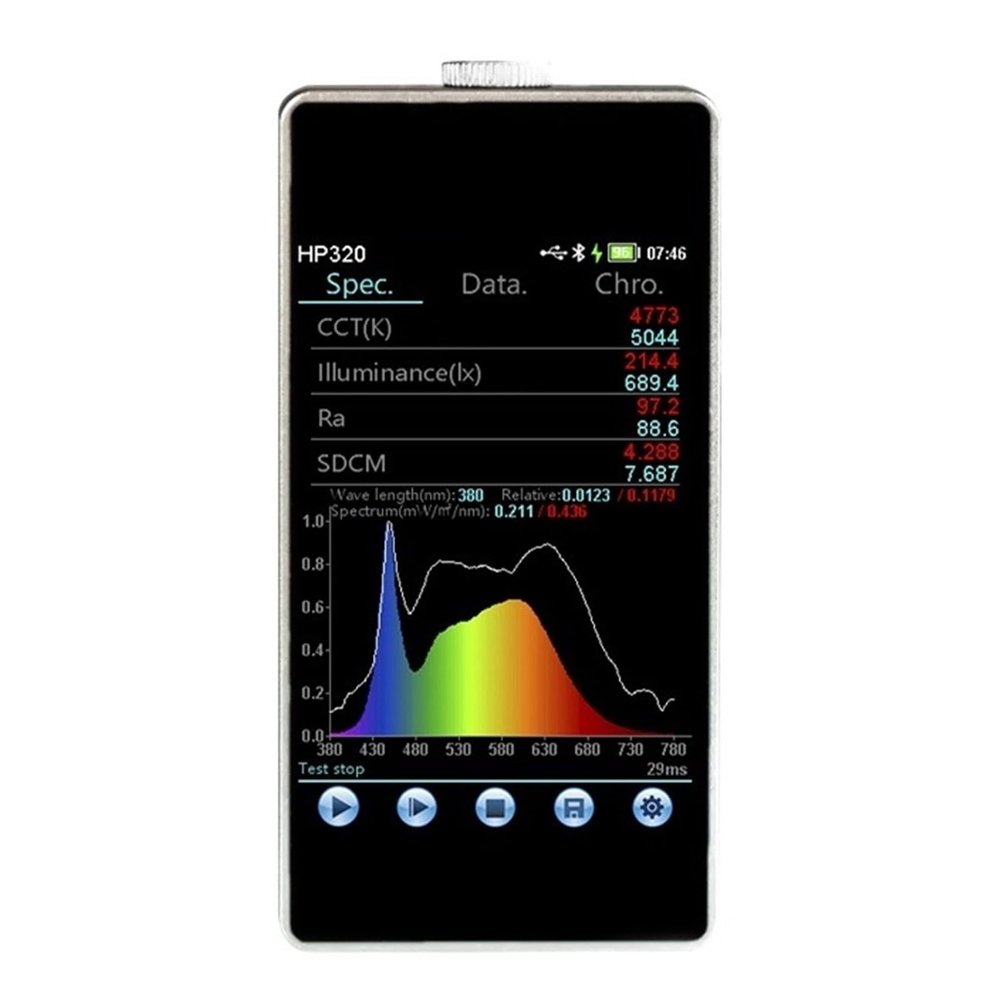

LIBODD HP330 320 Portable Spectrometer CCT CRI Lux Tester Illuminometer Photography Photometer(HP330)

Description

• The intelligent wireless spectral power meter generation of hand-held light source light color testing instrument.
• It uses advanced micro spectrometer, Embedded operating system and microcomputer technology to integrate.
• Sampling and measurement of light source parameters can be carried out anytime and anywhere, and PC software can be connected to the laboratory for testing.
• Efficient analysis and processing of test data stored in on-site testing can be carried out, with extremely high measurement linearity and accuracy.
• The IPS touch screen makes the field test application more convenient and simple, and more consistent with the parameter test analysis and verification of the field application scenario.

Main test parameters: colour temperature (K), illuminance lx, colour capacity SDCM, colour index Ra, colour coordinates, wavelength nm, colour purity, light to dark visual ratio (S/P), transmittance.
(1) Main applications
1, commercial lighting, health lighting, home lighting, architectural lighting and other on-site testing.
2, Laboratory R & D validation test.
3, in the home, shopping malls, schools, factories, greenhouses, outdoor areas such as on-site lighting measurement field;.
4Light source product development, production line quality control and other links
5, light source products online testing, sorting, real-time monitoring, etc.
(2) Product advantages
1. Communication mode: USB
2. Multi-platform operation: PC software control operation, IPS touch screen control operation.
(3) Core devices
1. TCD1254 CCD detector, band response range 380-780nm
2. Enhanced coating grating: line number: 600 lines
3. Enhanced collimator, focusing lens
4. 16-bit high-speed AD sampling
5. High precision and stable calculation circuit
6. High-precision optical circuit, small stray light, elimination of higher-order diffraction spectra (cloud spectral filtering system)
(3) Advantages of testing
1. Comparison test, light transmission test, parameter comparison (scrolling and locking mode)
2. Timing test, timing savings (can be verified by light attenuation test)
3. adjustable wavelength, easy to query (single band easy to view and analyse)
4. Test result compensation (test result coefficient compensation for different scenarios and environmental changes)
5. Online test Second, the optical path characteristics (fibre optic spectrometer structure)
1. Multi-optical input: directly cosine-corrected into the slit or through the SM905 fibre (with cosine correction)
2. Wavelength range: 380-780nm
3. Spectral resolution: 0.2nm, wavelength resolution:
4. Optical linearity 0.3 p
