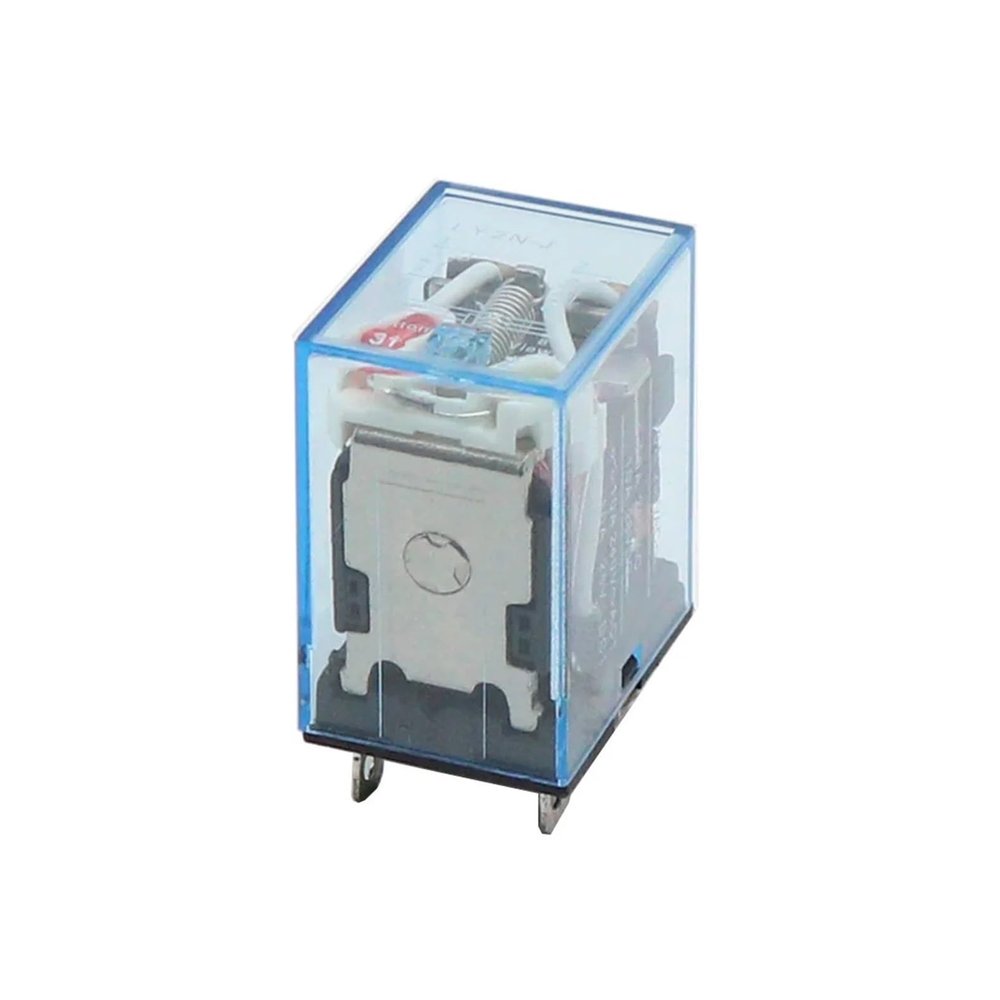

KKFAUS 1pcs LY2NJ Electronic Micro Electromagnetic Relay LED Lamp 10A 8 Pins Coil DPDT DC12V 24V AC110V 220V(AC,48V)

Description

• Model: LY2NJ (8 pins)
• Coil voltage: DC12V
• Coil Power: DC (W): 0.9AC (VA): 1.2
• Contact Structure: 8 pins 2 normally open 2 normally closed
• Contact capacity: 10A 250VAC
• Pull-in voltage: 80% (V)
• Release voltage: DC: 10% (V), AC: 30%

Specifications:
Model: LY2NJ (8 pins)
Coil voltage: DC12V
Coil Power: DC (W): 0.9AC (VA): 1.2
Contact Structure: 8 pins 2 normally open 2 normally closed
Contact capacity: 10A 250VAC
Pull-in voltage: 80% (V)
Release voltage: DC: 10% (V), AC: 30%
Contact resistance: 50 (m)
Insulation resistance: 100 (m)
Dimensions: 27.5 21 35.3mm
Terminals form: Socket
Action time: 20ms or less
Reset Time: 20ms or less
Operating frequency:
Mechanical 18,000 cycles / hour
Electrical 18,000 times / hour
Package included:
1 x Coil Power Relay LY2NJ
