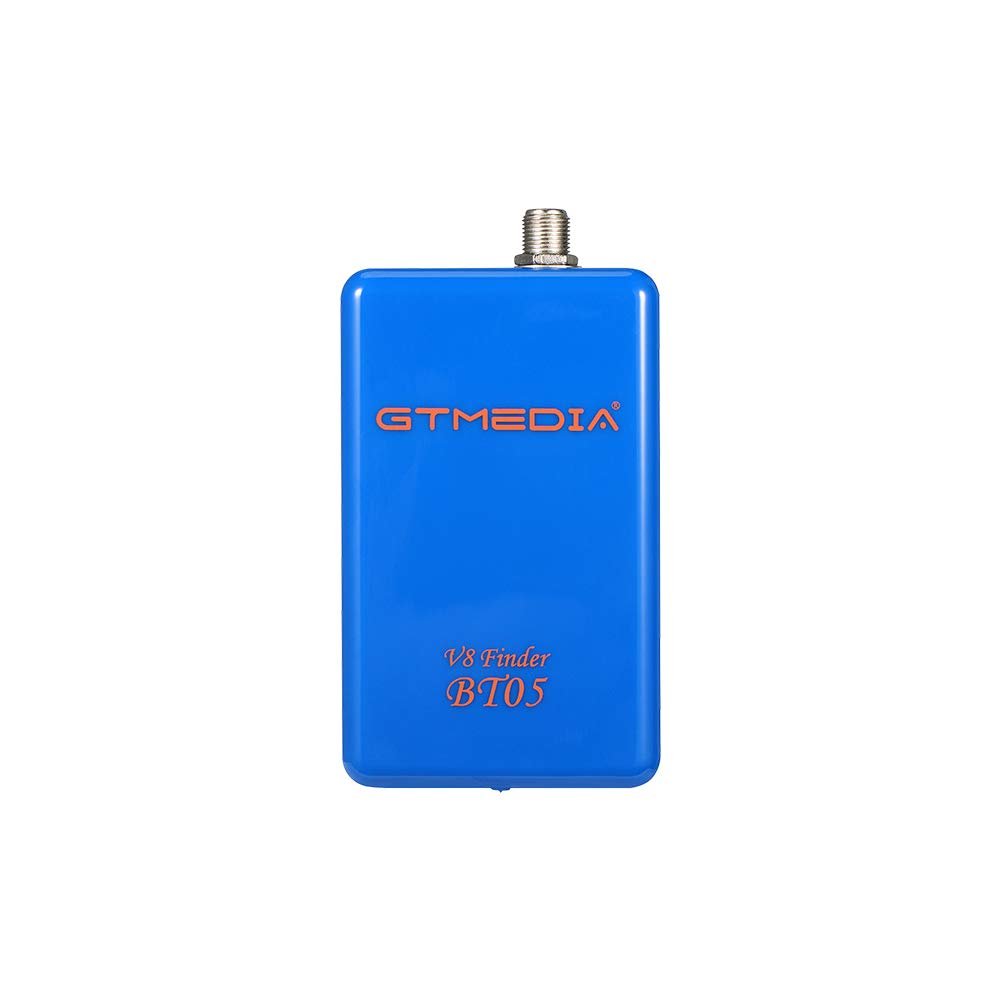

JUSHENG New GTmedia V8 Finder BT05 1080p Bluetooth DVB-S2 Satellite Finder Signal Meter with Lithium Support Android and iOS System

Description

• 1. DVB Finder DVB-S2 Multi standard demodulation & decoding;
• 2.Bluetooth connection for Android APP and Apple APP;
• 3.Support full satellite selection;
• 4.Built-in lithium battery 2200mAh;
• 5.Support LNB short circuit prompt, overload protection;

Hardware:

Flash Memory32MB Serial Flash
DDR2 Memory512M Bits
BlueFlashing:Not connected, Normally on: connected)
Green light: Power indication (When flicker means low power),
Red light: Charging indicator (Long bright means full charge),
Rear PanelLNB IN : Frequency Range950MHz to 2150MHz DVB-S/S2
OFF/ON: Power switch
DC 5V 2A : Charging input
System introduction:

DVB-S2DVB-S/S2 system standard:ETS 302 307(SCPC and MCPC receivable from C/Ku band satellite)
DiSEqC1.0support, 13/18V DC @ 300mA MAX,Overload Protection, 0/22K
Multi standard demodulation & decoding
"DVB-S2 CCM,QPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK+3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK+2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK+3/4, 4/5, 5/6, 8/9, 9/10 Legacy DVB-S,QPSK+1/2, 2/3, 3/4, 5/6, 7/8"
VCM mode supported
Dummy frame insertion supported
Automatic standard recognition
Support 1 to 60Mbaud symbol rates
Fast channel blind scan for RF frequency & symbol rate acquisition
High performance equalizer, canceling echo introduced by front end
Simple AGC Tuner interface
Build in DC cancellers to remove DC component
IQ imbalance compensator
Automatic roll-off factor (0.35/0.25/0.20) detection
Automatic spectrum inversion
Signal quality and statistic, allowing improved monitoring and debug
DiSEqCTM v2.2 modulation output for full control of LNB and satellite antenna
Lithium batterySpecification:

18650 Lithium Battery 3.7V 2200mAh 8.14Wh
Working normally for about 2 hours, charging for 2 hours (original 5V/2A adapter test)
PackingProduct Dimension105*50*18 MM
Packaged Size140*90*55MM
Unit Weight0.2 Kg with gift b
