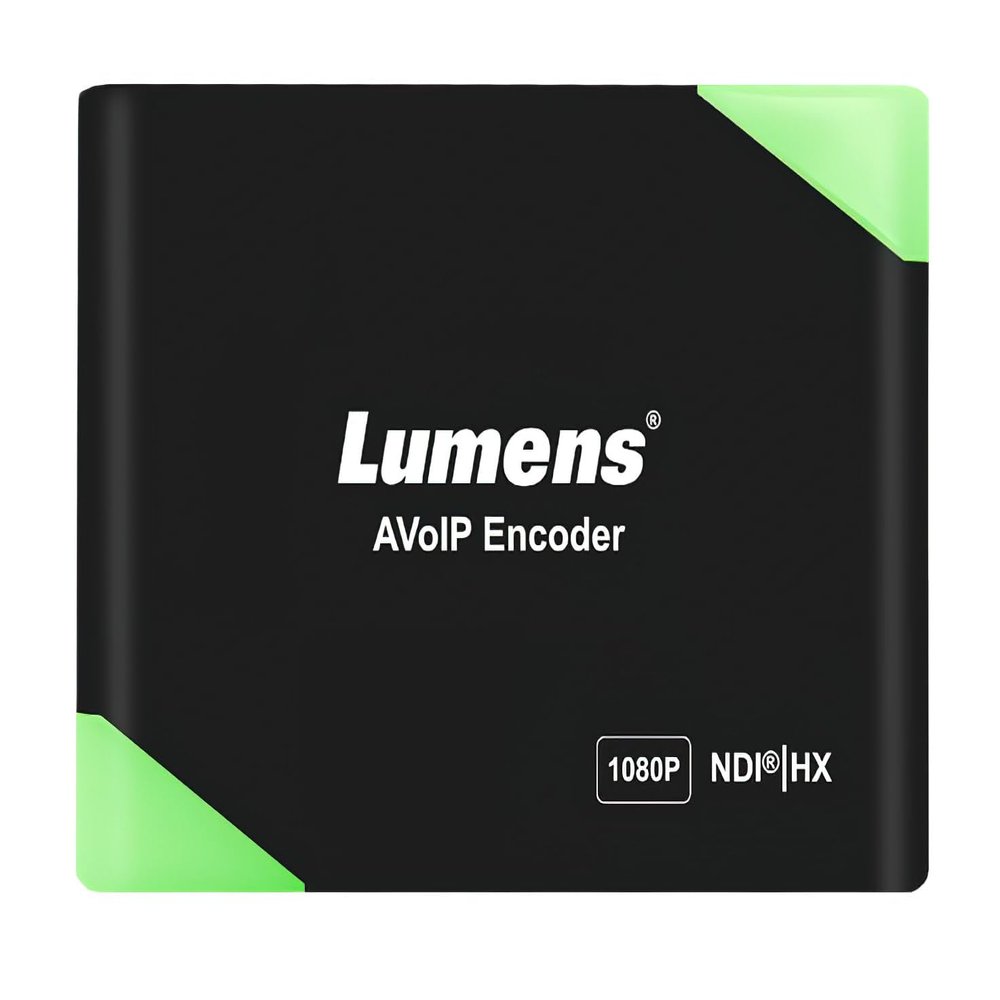

DirectNine Basics Lumens OIP-N40E Video to IP/NDI HX HD Encoder; Encodes HDMI Video to NDI HX and IP Formats; Dual Tally Lights; Long-Distance HDMI, USB and DisplayPort Transmission; PoE/USB Power, Black

Description

• Support RTSP, RTMP, SRT, NDI HX3, NDI HX2, HLS, MPEG-TS
• Delivers pristine 1080P video quality with ultra-low latency
• Long-distance HDMI, USB and DisplayPort transmission
• Supports PoE and USB power for easy installation
• Dual Tally lights (360)
• NDI HX3 Low Latency, High-Quality Video Distribution
• Encode HDMI to IP
• USB and DisplayPort Conversion
• OIP-N40E converts any HDMI camera into an IP device. Locally, a tally light indicates that the camera is live, while the IP signal is transmitted to decoders, computers or streaming platforms. OIP-N40E features a pass-thru HDMI output

Lumens OIP-N40E Video to IP/NDI HX HD Encoder; Encodes HDMI Video to NDI HX and IP Formats; Dual Tally Lights; Long-distance HDMI, USB and DisplayPort Transmission; PoE/USB Power

The OIP-N40E encodes HDMI video to NDI HX and IP formats at very low latency. With support for RTMP(S) and SRT encoding, the device can transmit directly to video streaming platforms. The device enables users to send and receive USB (UVC/UAC ) and DisplayPort signals over IP networks.

Key Features:
- Support RTSP, RTMP, SRT, NDI HX3, NDI HX2, HLS, MPEG-TS
- Delivers pristine 1080P video quality with ultra-low latency
- Long-distance HDMI, USB and DisplayPort transmission
- Supports PoE and USB power for easy installation
- Dual Tally lights (360)
- NDI HX3 Low Latency, High Quality Video Distribution
- Encode HDMI to IP
- USB and DisplayPort Conversion
- OIP-N40E converts any HDMI camera into an IP device. Locally, a tally light indicates that the camera is live, while the IP signal is transmitted to decoders, computers or streaming platforms. OIP-N40E features a pass thru HDMI output

Specifications:
- HDMI Input: HDMI x1
- HDMI Output: HDMI x1
- USB Input/Output: Type-C x1 (Support DP Alt-Mode)
- Audio Input: Line In/MIC In, 3.5mm x1
- Audio Output: Line Out, 3.5mm x1
- Ethernet: GbE LAN (RJ-45) x1
- Menu Button: Yes
- Tally Light: Yes
- Reset Pin: Yes
- LED Indicator: Power light, Status Connection light
- Video resolution: Up to 1080p60
- IP Protocol: SRT / RTMP / RTMPS / HLS / MPEG-TS over UDP / RTSP / NDI HX2 / NDI HX3
- Video encoding: H.264 / HEVC
- Video Encrypt: AES 256
- Audio encoding: Yes
- Power: PoE / USB
- Dimensions (WxHxD): 4.92 x 3.5 x 0.98 inches
- Weight: 0.77 pounds
