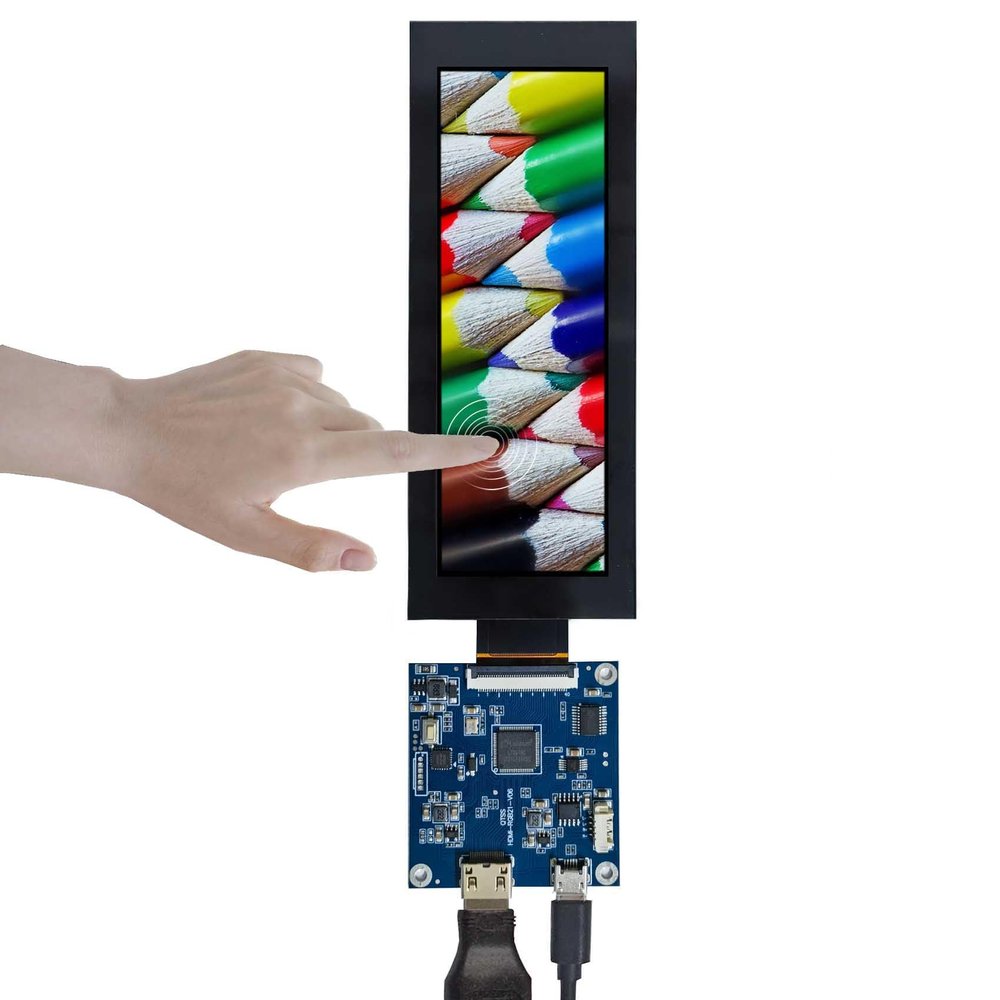

FanyiTek 4.58" 4.58 inch 320x960 700 nits Capacitive Touch Sensor Panel LCD Square Screen and Controller Board 40 pins

Description

• 6.2" mini Square MIPI screenIPS full viewing angle,Great resolution 360x960 ,Outline Size 62.2152.363 (HVD)mm,Display Area 55.3 147.46 (HV)mm,Interface MIPI, 40 pins ,FPC,Backlight WLED,Input Voltage 1.8/3.3 V.
• Micro controller boardVideo input :port ,board size: 50mm x 45mm x 5mm,pls use it in insulated environment.
• Input Power5Vdc More than 0.5A,Pls prepare it seperately .
• Plug and playConnecting cables and ports according to link picture details ,Power on and enter cable ,the screen can work well after powering.
• Packing lists1 LCD Board VS-RGB21-V06,16.2inch 360x960 VS62001C40 LCD Screen

LCD Controller Board:
Input Power Adapter: 5Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: Micro H/D
Board Size: 55mm x 45mm x 5mm

4.58" VS458002C40 320x960 Capacitive Touch LCD Screen:
Display New Mode2, Normally Black, Transmissive
Resolution 320(RGB)960
Outline Size 49.17128.94 (HVD)mm
Display Area 36.77 110.3 (HV)mm
Brightness 700 cd/m (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR10) [Left / Right / Up / Down]
Interface MIPI, 40 pins ,FPC
Backlight WLED
Input Voltage 1.8/3.3 V (Typ.)

Packing list:
1 LCD Board VS-RGB21-V06
1 4.58inch 320X960 VS34004C40 Capacitive Touch LCD Screen
