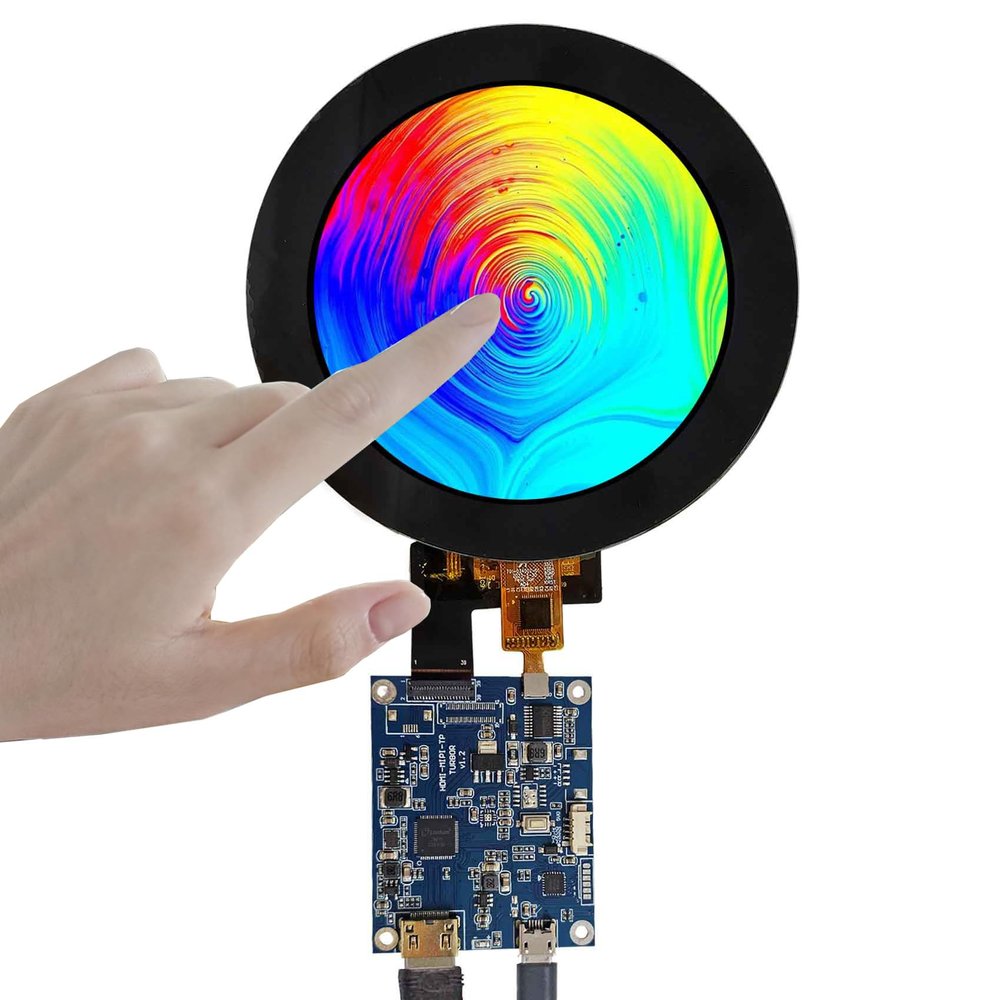

FanyiTek 3.4 inch 800x800 IPS MIPI 330nit Round LCD Touch Screen and 39 pins Controller Board

Description

• Round MIPI screen3.4" 800x800 cirle display,IPS full viewing angle,outline size:94.9x96.95x2.3(WHD)mm,display area:87.6x 87.6(WH)mm,330nit high brightness ,WLED backlight ,input voltage: 2.8V .
• Controller boardVideo input :port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.
• Capacitive Touch sensor panelThe design of touch panel makes the operation more convenient, No button damage issue for after long time use.
• Input Power5Vdc More than 1A,Pls prepare it seperately .
• Plug and playConnecting cables and ports according to link picture details ,Power on and enter signal cable ,the touch screen can work well after powering.

LCD Controller Board:
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Video Input: Micro H/D

Board Size: 50mm x 35mm x 5mm

3.4" VS34003C39 800X800 Capacitive Touch LCD Screen:
Display Mode IPS, Normally White, Transmissive
Resolution 800(RGB)x800
Outline Size 104.4x104.4x4(WHD)mm
Display Area 87.6x 87.6(WH)mm
Brightness 330 cd/m (Typ.)
Contrast Ratio 300:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR10) [Left / Right / Up / Down]
Interface Mipi, 39 pins
Backlight WLED
Input Voltage 2.8V (Typ.)

Packing list:
1 LCD Board
13.4inch VS34003C39 800x800 Capacitive Touch LCD Screen
