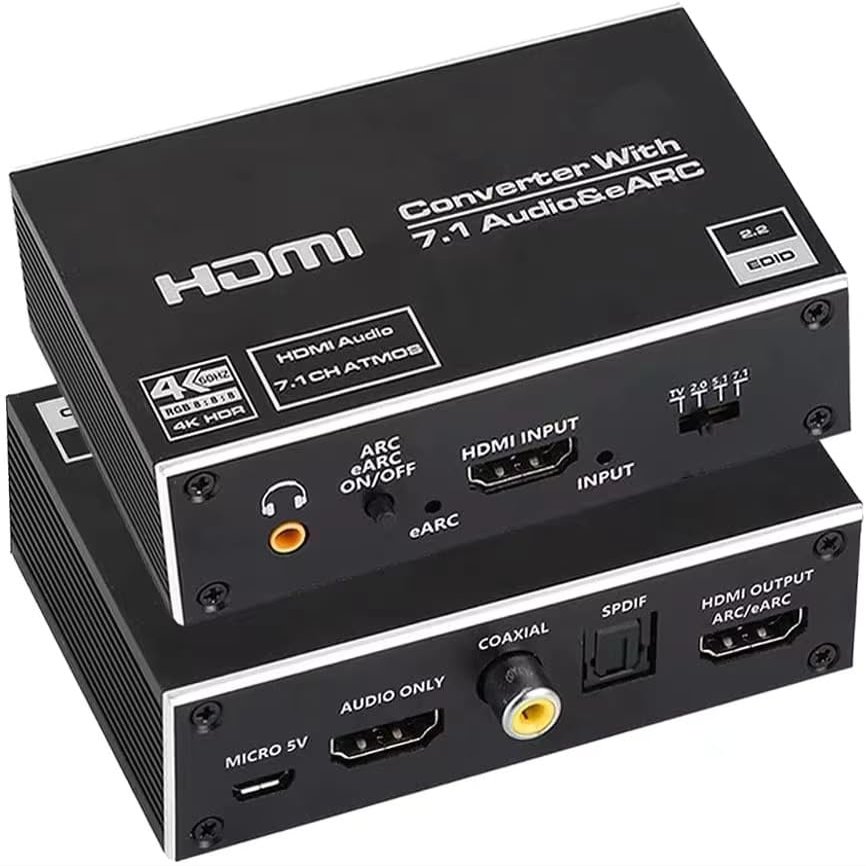

eARC HDMI Audio Extractor Converter 4K@60Hz,HDMI 2.0 to HDMI Audio Extractor Switch 18Gbps with 7.1CH Atmos/eARC/ARC/Toslink/Coaxial/ 3.5mm Audio Out HDCP 2.2 DTS HDR

Description

• ARC/eARC :First ,Please make sure your display support ARC/eARC function .Second ,Using HDMI cable plug into HDMI ARC/eARC port on your display .and the other side plug into the HDMI output on the switch .( warm tips :3 .5mm audio does not support ARC/eARC function).
• HDMI(AUDIO ONLY)/coaxial /optical toslink SPDIF audio output support audio return channel function (ARC) AUDIO ONLY HDMI support eARC (Enhanced Audio Return Channel).
• HDMI Audio Extractor -with Optical TOSLINK SPDIF+Coaxial+3.5mm+HDMI audio out allow you to extract the sound from the HDMI input source (like PS5/4,Xbox one etc .)to your soundbar or amplifier ,no need connecting TV or Monitor .
• HDMI ARC/eARC Adapter - Extractor the Audio from IV to Soundbar or Amplifier .Connect your TV HDMI (ARC/eARC)Port to this switch HDMI Output Port with HDMI Cable ,then optical/Coaxial /HDMI cable to the soundbar ,Speaker ,home theater ,AV receivers etc ,then open ARC/eARC button.
• Highly recommend use AWG 26(19+1) standard HDMI 2.0 cable .the distance could reach up to 5 meters before and after when the resolution is 4K@60Hz,can reach up to 8 meters before and after if the resolution is below 4K@30Hz.
• Support 24bit deep color per channel ( Kindly Note :It does not compatible with DVI ,we do not recommend you use HDMI to DVI cable connect to your projector /monitor)

Features:
[4K HDMI Audio Extractor]high performance: 1 HDMI input and 1 HDMI output with audio Extract Function. The Audio can be output by 3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port. It allows user to use the existing audio Receiver to receive 4Kx2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR(High Dynamic Range ) pass-through and eARC/ARC Function.
[Support ARC and eARC Function]Extract the Audio from TV to Soundbar or Amplifier. Connect your TV HDMI(ARC or eARC) Port to this Audio converter HDMI Output(ARC/eARC)Port with HDMI Cable, then connect Optical cable or HDMI Cable or Coaxial to Amplifier or SoundBar. (Please Note: eARC and ARC function is only available from the Optical SPDIF,Coaxial and HDMI Audio Port.)
[High HDMI Input Resolution]Support Up to 4K@60Hz RGB 8:8:8. Color Space: RGB 8:8:8, Ycbcr 4:4:4/ 4:2:2/ 4:2:0. Color Deep: 8-bit, 10 bit, 12 bit(1080p@60HZ); 8-bit (4kx2k@60Hz RGB 8: 8: 8/YUV 4: 4: 4) 8-bit, 10-bit, 12-bit(4Kx2K@60HZ Ycbcr 4:2:2/4:2:0).
[Supported HDMI Audio Extract formats]HDMI Audio Formats: PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X. Support Blue-ray 24/50/60fs/HD-DVD/XVYCC. SPDIF/Coaxial Formats: LPCM2.0/5.1, Dolby Digital 2.0/5.1, DTS2.0/5.1.When USED HDMI Output eARC/ARC Function: TV eARC/ARC audio output port should Connect to TV with ARC/eARC function.
[Compatibility]HDCP support 2.2/2.3, compatible with HDMI 2.0b. HDMI Input support: Computer, Laptop, PS3, PS4, Xbox, Blu-ray DVD Player, STB etc. HDMI Video Output support: Projectors, HDTVs, Screen, Monitor, etc with ARC/eARC Port. HDMI Audio Output support: Home theater. SPDIF / Caoxial Output support: Speaker. 3.5mm L/R Output support: headphone. Power Port: DC/5V.
Package:
1 * HDMI Audio Converter
1 * DC 5V/1A USB Power Cable
1 * User Manual
Notes :
1 .ARC/eARC :First ,Please make sure your display support ARC/eARC function .Second ,Using HDMI cable plug into HDMI ARC/eARC port on your display .and the other side plug into the HDMI output on the switch .( warm tips :3 .5mm audio does not support ARC/eARC function )
2 .You should operate it properly when the switch is working ,If you find the switch is not working ,we suggest you unplug the power supply and plug it again .
3 .When turn on the switch ,By default ,the input 1led indicator will light on at the start when disconnect HDMI source .
4 .It supports Optical /3.5mm/HDMI audio out cable up to 1 0meters(max),If you choose HDMI audio out ,you can enjoy 7 .CH,5 .1CH,2 CH or audio copy ,If you choose optical audio out ,you can enjoy 5 .1 CH or 2 CH or audio copy .If you choose 3 .5 mm audio out ,you can enjoy 2 CH or audio copy .
5 .5 seconds to change next source .This is normal ,please don 't worry .
