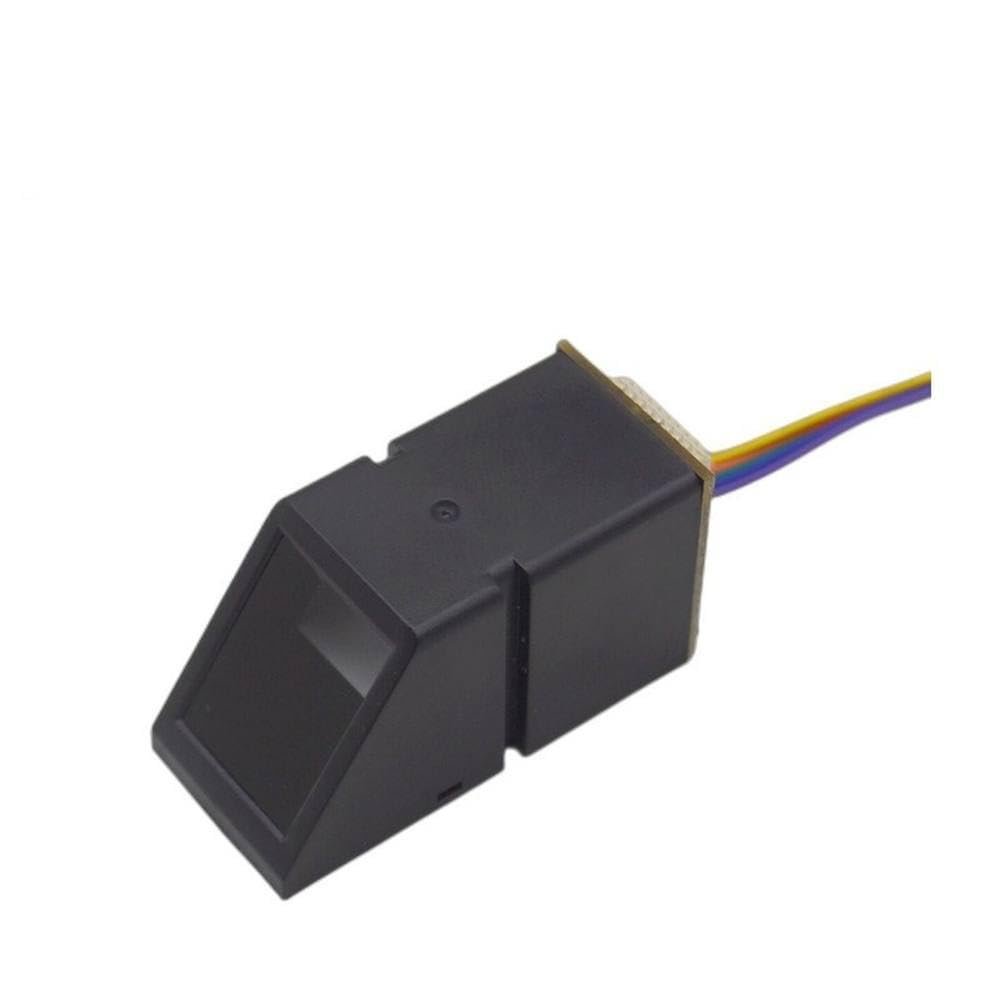

DirectNine Basics AS608 Fingerprint Reader Sensor Module Optical Fingerprint Scanner for Locks with USB/UART Interface

Description

• AS608 Fingerprint Reader Sensor Module Optical Fingerprint Fingerprint Module For Locks Serial Communication Interface

Product description

JM-101 is an integrated fingerprint module integrated fingerprint processing module and the optical path of the fingerprint processing section, having a small low-power interface simple features high reliability. Fast recognition speed. Good adaptability wet finger, the fingerprint search high speed.
JM-101 communication interface module both USB and UART communication interface.

Product Parameters

Resolution: 500dpi

Supply current: <60mA

Supply voltage: DC 3.3V

Fingerprint image entry time: <1.0 seconds

Peak current: <60mA

Window area: 15.3x18.2MM

Communication Interface: USB/UART

How the Module Works

1. Fingerprint features

The fingerprint algorithm extracts features from the acquired fingerprint image and represents the fingerprint information. The storage, comparison and search of fingerprints are all done by operating fingerprint features.

2. Fingerprint processing includes two processes: fingerprint registration process and fingerprint matching process (in which fingerprint matching is divided into fingerprint comparison (1:1) and fingerprint search (1:N) two ways).

When the fingerprint is registered, two fingerprints are entered for each fingerprint, and the input image is processed twice. The synthesis module is stored in the module.

When the fingerprint is matched, the fingerprint sensor is used to input the fingerprint image to be verified and processed, and then it is compared with the fingerprint module in the module (if it is matched with a module specified in the module, it is called fingerprint comparison mode, ie, 1:1 mode. If matching with multiple modules is called fingerprint search, ie 1:N mode, the module gives the matching result (pass or fail).

Module interface de
