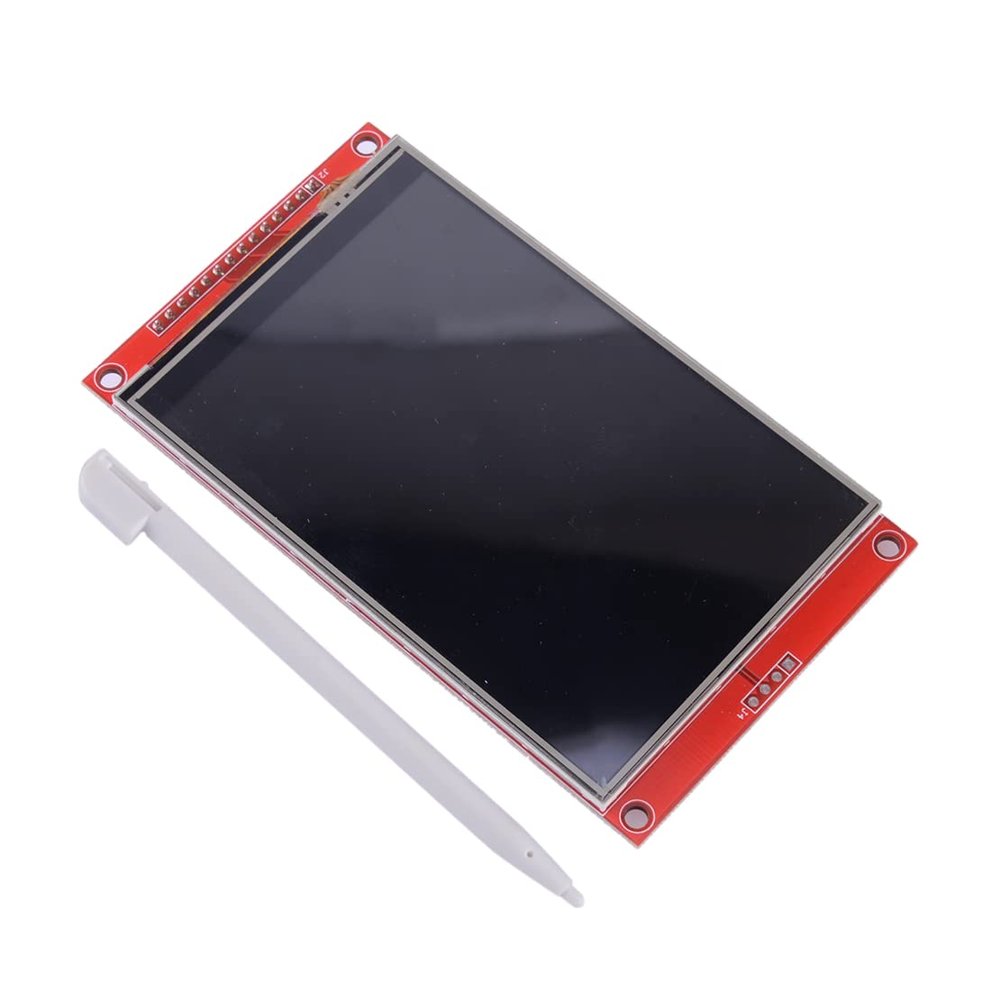

ciciTree 4.0" Inch TFT LCD Screen Touch Display Board Interface Module SPI 480x320 SD

Description

• Widely used, 4.0-inch color screen, support RGB 65K color display, display rich colors
• Provide underlying drive technology support
• With SD card slot to facilitate expansion experiments
• Using SPI serial bus, only a few IOs can light up the display
• 480X320 resolution, touch function

Condition: 100% new
Color: Red
Material: Plastic & Metal & PC
Size: As picture shows
Display Color: RGB 65K color
Type: TFT
Driver Chip: ST7796S
Resolution: 480*320(Pixel)
Module Interface: 4-wire SPI interface
Effective Display Area (AA area): 55.68x83.52 (mm)
Module PCB Backplane Size: 61.74x108.04(mm)
Hornworm Touch Screen Type: resistance touch melt touch screen
Touch IC: XPT2046
VCC Power Supply Voltage: 3.3V~5V
Item included: 1 x LCD touch screen module

This Is Aftermarket Replacement Item But Not Genuine
Note:
1) All dimensions are measured by hand, there may be small deviations.
2) Color may vary slightly due to the color setting of each individual monitor.

Feature:
1) Widely used, 4.0-inch color screen, support RGB 65K color display, display rich colors.
2) Provide underlying drive technology support.
3) With SD card slot to facilitate expansion experiments.
4) Using SPI serial bus, only a few IOs can light up the display.
5) 480X320 resolution, touch function.
6) Provide rich sample programs, Long-term stable work.
