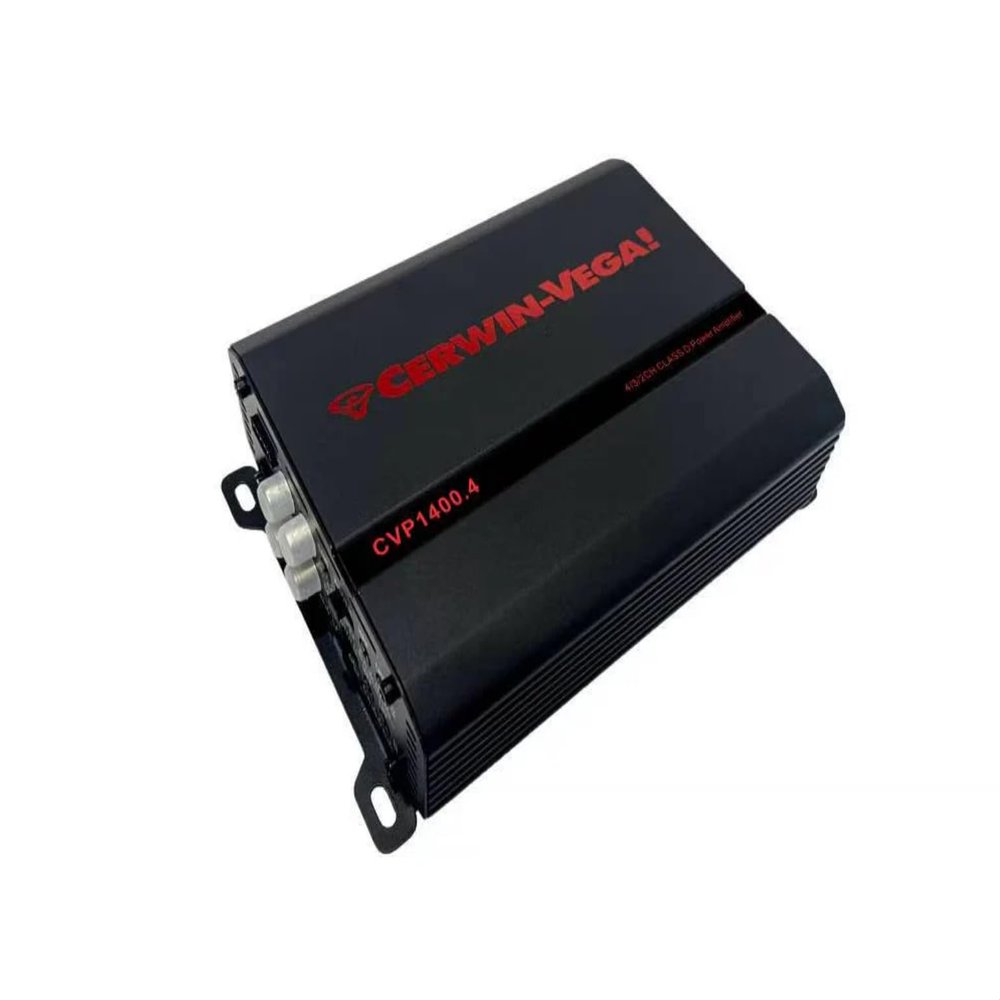

Cerwin Vega! CVP1400.4 - CVP Performance 1400W MAX 4-CH Small Chassis Amplifier

Description

• Wide-Voltage Auto-On Power Supply: Operates with high-level inputs (4V-8V) and features automatic turn-on capability
• Advanced PWM Power Stage: Utilizes a full MOSFET DC-DC PWM power supply for high efficiency and robust power handling
• Adjustable Signal Filtering: Equipped with both adjustable low-pass and high-pass filters for precise frequency control
• Comprehensive Protection System: Integrates multiple safeguards including short circuit, low impedance, reverse polarity, and over-heating protection
• Modern SMD PCB Construction: Built on a double-sided, 2-layer board using Surface-Mount Device (SMD) technology for a compact and reliable design

CERWIN-VEGA is proud to introduce the new, totally redesigned CVP Series Amplifiers. An exceptional fusion of power, performance and affordability. Engineered with a compact footprint the New CVP Series Amplifiers deliver premium sound quality with a punch at an affordable price. The HI-Level Inputs allow you to connect The New CVP Series Amplifiers to Factory and Aftermarket Radios. Whether its a Car, Truck or SUV the new compact design allows for easy installation and will not take up a lot of space. The Power to Size ratio will surpass your expectations.
Specifications
RMS Power Ratings @ 4: 80W x 4
RMS Power Ratings @ 2: 140W x 4
RMS Power Ratings Bridged @ 4: 290W x 2
Channel Separation: >60dB
Frequency Response(+/-3bB): 10Hz-30KHz
S/N Ratio @ A/W 30k: 90dB
Sensitivity: 250mV-6V
High Pass Filter(-6dB)/Subsonic: 52Hz-400Hz
Low Pass Filter(-12dB): 52Hz-400Hz
Bass Boost:
Power Protection Indicator
Short Circuit And Thermal Protection
Fuse: 30A x 2
Dimensions (LxWxH): 7.28" x 4.92" x 1.93" (185mm x 125mm x 49mm)FEATURES
High-Level Inputs with Auto Turn On (4v-8v)
Full MOSFET DC-DC PWM Power Supply
Double Sided 2-Layer PC Board
SMD Technology
Adjustable Low-Pass and Hi-Pass Filters
Short Circuit Protection
Low Impedance Protection
Reverse Polarity Protection
Over Heating Protection
