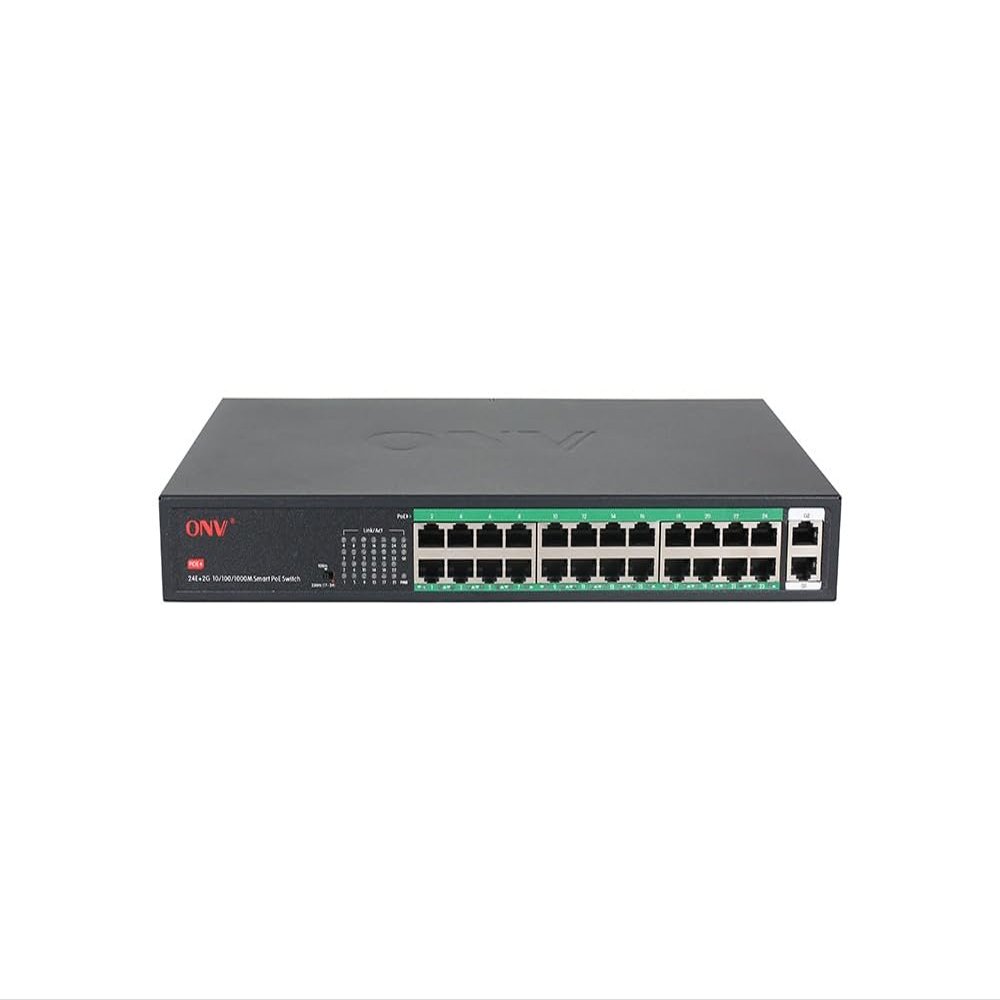

26-Port Gigabit Uplink PoE Switch 24*10/100Mbps 2*10/100/1000M Uplink RJ45 Ports Support IEEE802.3af/at PoE Standard Smart PoE Switch

Description

• Innovative FunctionThe smart 26port POE switch has 10/100M access, Gigabit uplink.This POE switch can support non-blocking wire-speed forwarding. Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure. Provides 24*10/100M PoE ports and 2*10/100/1000M RJ45 ports for flexible networking and meets the networking requirements of various scenarios.
• 26Port POE + SwitchThe smart switch has 24*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports. Port 1-24can support IEEE802.3af/at PoE standard.Single-port PoE power up to 30W . As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable.
• Smart PoE Power SupplyThe smart 26port POE switch comply with IEEE 802.3af/at PoE standard, without damaging non-PoE devices. 24*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios. Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
• Stable & ReliableThe smart POE switch can Support desktop and 1U-19 inch cabinet installation. Plug and play, no configuration, simple and convenient. Port 17-24 can support 10M/250 meters transmission when the functional switch is on 250m. The user-friendly panel can show the device status through the LED indicator of PWR, Link,and PoE. Self-developed power supply, high redundancy design, providing a long-term and stable PoE power output. Low power consumption, galvanized steel casing, no fan, and excellent heat dissipation to ensure the stable operation of the switch.
• Stable & ReliableThe smart POE switch can Support desktop and 1U-19 inch cabinet installation. Plug and play, no configuration, simple and convenient. Port 17-24 can support 10M/250 meters transmission when the functional switch is on 250m. The user-friendly panel can show the device status through the LED indicator of PWR, Link,and PoE. Self-developed power supply, high redundancy design, providing a long-term and stable PoE power output. Low power consumption, galvanized steel casing, no fan, and excellent heat dissipation to ensure the stable operation of the switch.

Model:ONV-H1024PL
Interface Characteristics
Fixed Port:
24*10/100Base-TX PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data)
Ethernet Port:
Port 1-16/ 1-24 support 10/100Base-TX and port 17-18/ 25-26 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Functional Switch:
Port 9-16/ 17-24 can support 10M/250 meters transmission when the functional switch is on 250m.
Note: When the switch status changes, the PoE switch must be restarted for the function switch to take effect.
Twisted Pair Transmission:
10BASE-T: Cat3,4,5 UTP (250 meter)
100BASE-TX: Cat5 or later UTP (100 meter)
1000BASE-T: Cat5e or later UTP(100 meter)
Chip Parameter
Network Protocol:

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
Forwarding Mode: Store and Forward (Full Wire Speed)
Switching Capacity: 14.8Gbps (Non-blocking)
Forwarding: 6.55Mpps
Rate@64byte
MAC: 16K
Buffer Memory: 4M
Jumbo Frame: 9.6K
LED Indicator: Power: PWR (Green), Network : Link (Yellow), PoE: PoE (Green)
PoE & Power Supply
PoE Port: Port 1 to 24
Power Supply Pin: 1/2(+) 3/6(-)
Max Power Per Port: 30W, IEEE 802.3 af/at
Total PWR / Input Voltage: 250W/ (AC100-240V)
Power Consumption: Standby <20W, Full load <250W
Power Supply: Built-in switching power supply, AC100~240V 50-60Hz, 4.1A
