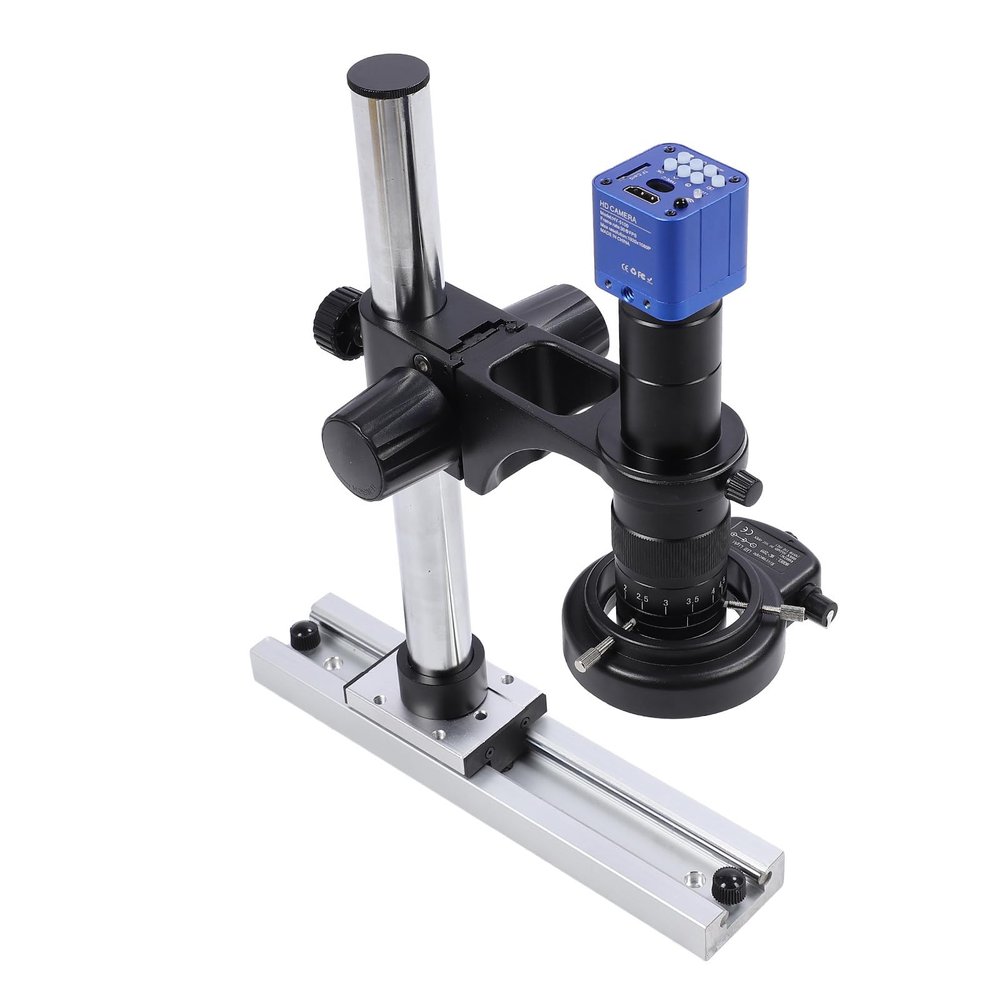

24MP HD Digital Microscope Camera Set, 1080P Video with 144 LED Adjustable Light, Software for XP, 7, 8, 10 Industry Visual Inspection (US Plug)

Description

• Extensive Measurement And Editing Features: The accompanying software offers a rich array of functionalities, including adding layers, watermarks, and custom annotations, as well as color balance adjustments and image transformations. Users can conduct accurate measurements in various units (micrometers, millimeters, inches, etc.)
• Enhanced Lighting System: The microscope features a 144 LED light stepless adjustable brightness. This design allows for uniform, no flicker illumination without or shadows, ensuring optimal lighting conditions. The flexible height adjustment (32mm) and lateral movement (295mm rail) provide excellent versatility, making it easy to achieve the desired lighting setup for any observation angle.
• Versatile Software Compatibility: The digital microscope camera set seamlessly supports a wide range of for operating systems, including for XP, 7, 8, and 10. Simply connect your digital microscope to your computer via USB, and you can take advantage of completely software that offers a user friendly experience for both beginners and professionals alike.
• Wide Application: This video industry microscope camera set can be used for industrial , visual inspection, microscope, astronomical telescope, intelligent terminal equipment, face recognition, advertising machine, vegetable recognition, intelligent vending machine, electronic weighing object recognition, code scanning camera and so on.
• Excellent Imaging: Equipped with a built in 24MP HD camera sensor and 1080P video recording capabilities, this high resolution microscope camera kit makes observation easy and engaging. The robust aluminum alloy construction ensures durability and accuracy, allowing users to catch crystal clear images and videos for detailed analysis.

Specification:
Item Type: Electronic Microscope Camera Kit
Material: Aluminium Alloy
Remote Control Battery: 1 x CR2025 150mAh (Included)
Microscope Camera:
Model: HY-5100
Sensor: for CMOS 1/2.9 IMX Sensor
Video Output: 1080P (HD Output), 1080P at 30fps (USB Output)
Effective Pixels: 24MP, 16MP
Pixels Size: 2.85 x 2.85um
Measurement Software: Software with measurement function for Win XP, for Win 7, for Win 8, for Win 10
Digital Zoom: 7X Digital Zoom
HD Port Support Ratio: Support 4:3, 16:9, 16:10 Screens
USB Interface: Type C USB (Connect to Computer)
USB 2.0 Output Resolution: 1920x1080P 30FPS, 1280x720P 30FPS, 640x480P 30FPS
Memory Card: Maximum Support 128G (Not Included)
Exposure Compensation: Support
Shutdown Save: Support
Cursor: Support
White Balance: Support EV Value, Automatic and Manual White Balance
Spectrum Response (Wavelength): 400-1000nm
Lens Type: Support C, CS Interface
Output Video Format: MP4
Language Setting: Chinese, English, Japanese, French, German, Russian, Italian, Korean, Turkish
Charging Port: Type C
Observation Filters: Color, Black and White, Negative
180X C Lens:
Working Distance: Approx. 100mm / 3.94in
Mount: Zoom C Mount Lens
Objective Magnification: 0.7-4.5x (Approx. 10-180x on Screen)
144 LED Adjustable Compact Microscope Light

How to Use:
Take out the product and install it, then it can be used.

packing list:
1 x Microscope Camera
1 x HD Cable
1 x USB Cable
1 x Remote Control
1 x Adapter
1 x Microscope Camera Software Manual
1 x 180X Microscope
1 x 0.5X Field Amplifier
1 x Eyepiece Guard
1 x 144 Light
1 x Light Power Adapter
1 x Stand Base
1 x Stand Pole
1 x Electronic Eyepiece Holder
2 x Screws
