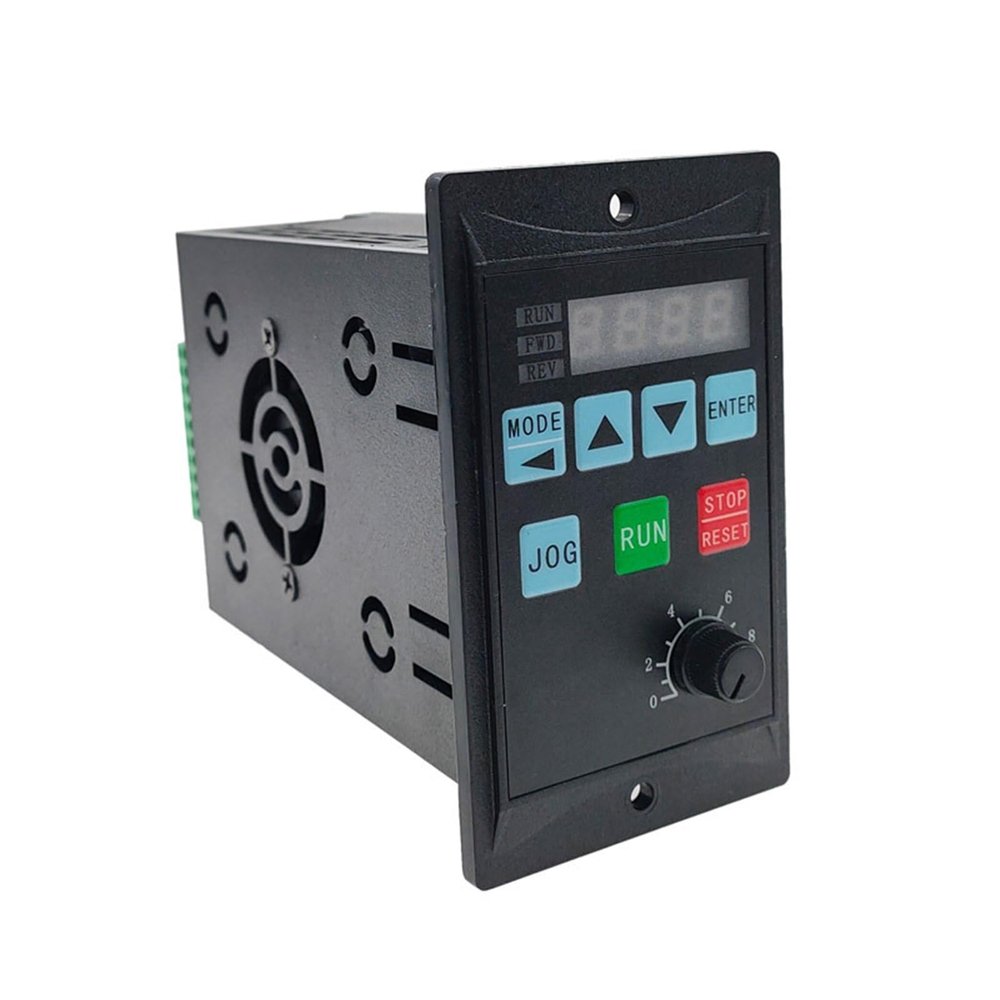

1.5KW Frequency Converter Electric Inverter 750W RS485 Add Motor Driver MCU 220V Single Phase Input 3-Phase Output(750W)

Description

• Power Inverters
• 1.5KW Frequency Converter Electric Inverter 750W RS485 Add Motor Driver MCU 220V Single Phase Input 3-Phase Output

Power Inverters
Note:These mini frequency converters are not recommended to operate at full load, for example, 1500W frequency converters should be operated below 1500W as much as possible, otherwise it may cause excessive temperature.
Electric Inverter User Manual
Chapter I Overview
This manual is intended for installation, commissioning, maintenance and use by the user.
------------------------------------------------------------------------------------------------------------------------
1.Unpacking inspectionRemove the Inverter from the box and confirm that: Whether the product appearance is damaged or
deformed: Whether the components are damaged or fall off: Observe the rating of the nameplate on
the chassis side and check whether it is consistent with your order requirements:
Check whether the items listed in the packing list box are complete. If there is any doubt about the product damage, please contact the supplier immediately.
2.Please read it carefully before use and keep it properly.
3.Use environment.Power supply : Single input AC220V40%
Temperature: -10- 50
Humidity: 0% - 65%
4.PrecautionsWhen wiring, the power supply must be turned off.
Make sure that AC power is never connected to the motor output.
5.There is no condensation, dust and corrosive liquid/gas on the site.
6.The installation position shall be firm and free from vibration.
7.As the overall size is small, please handle the wire ends properly.
8.If the ambient temperature is high, please leave enough heat dissipation space.
Chapter II Installation and wiring
Opening size: 52.5mm*80mm*130mm
==========
Output Frequency : 0-99.0HZ
Model Number : 750W 1500W
Output Power : 500 - 1000W
Type : DC/DC Converters
Weight : 0.5kg
Size : 60*100*130mm
Output Type : triple
