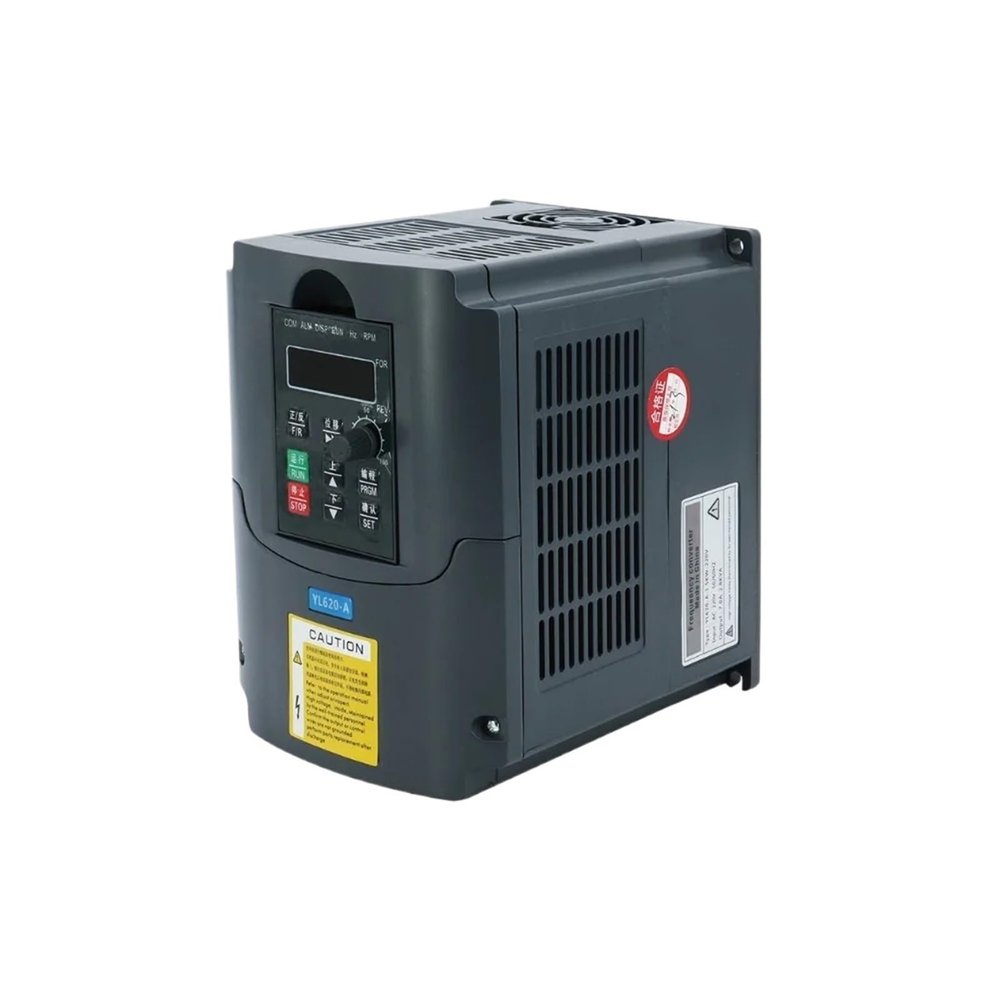

1.5kw 2.2KW Frequency YL Inverter VFD 110V/220V/380V Inverter 400HZ Speed Drive for(0.75KW,220v)

Description

• Power Inverters
• 1.5kw 2.2KW Frequency YL inverter VFD 110V/220V/380V Inverter 400HZ speed Drive for

Power Inverters
1 &220v 22Kw inverteVFD
1Forced cooling fan Porous heat dissipation
2.Smart chip powerful function
3.Stable charging/discharging blocking, filtering
Product model and specificaion
Model
Inputvoltage
Power
(KW)
Driver
capacity(KVA)
Output
Current(A)
Applicablemotor(KW)
YL620/YL620-A
Single-phase110V 60Hz
0.75
4 7.8
0.75KW
YL620/YL620-A
Single-phase 110V 60Hz
1.5
6 13
1.5KW
YL620/YL620-A
Single-phase 110V 60Hz
2.2
8 21
2.2KW
YL620/YL620-A
Single-phase 220V 50/60Hz
0.75
2.4
4 0.75KW
YL620/YL620-A
Single-phase 220V 50/60Hz
1.5
3.0
7 1.5KW
YL620/YL620-A
Single-phase 220V 50/60Hz
2.2
4.0
10
2.2KW
The default setting of YL inverter is 400hz, no need to set it, it is suitable for our motor
YL Inverter
Digital Dispaly
Forward/renerse switch key
Run key
Stop Reset button
Shift key
Frequency adjustment key
Programming key (forward/backward)
Select/confirm key
Up and down keys
Terminal symbol
Decription
N L
Power input terminal (220V inverter is single-phase 220V input,110V inverter issignle-phase 110V input)
U.V.W
Inverter output terminal(220V inverter is three-phase 220V output,110V inverter is three-phase 110V output)
+DB-
Braking resistor connection end optional (see page 27 for details on braking resistor confoguration)
FG
Frame Ground
External terminal two or three wire control motor wiring
Parameter settings:
POO.1 is set to 1 the motor is controlled by the external terminal, and the STOP key on the operation panel is valid;
POO.16 is set to 2EF(X4), REV(X5), FWD(X6, self-holding).
Three-wire control motor operation
Parameter settings:
POO.1 is set to 1 the motor is controlled by the external terminal, and the STOP key on the operation panel is valid;
POO.16 is
